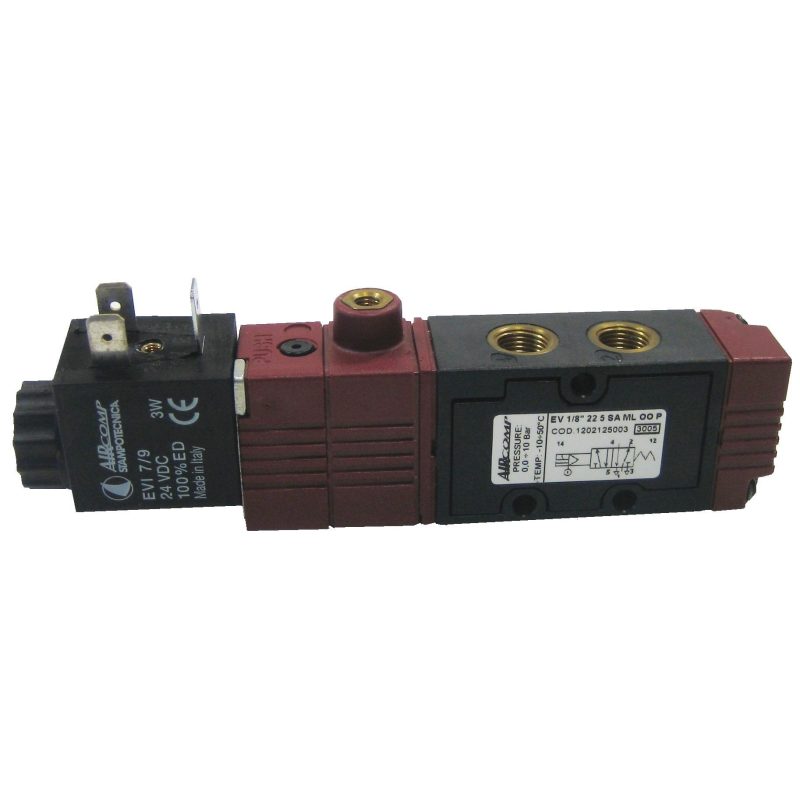

5/2 monostable G1/8 solenoid valve with external pilot, spring return - Line 120
search
  • 5/2 monostable G1/8 solenoid valve with external pilot, spring return - Line 120

Aircomp 1202125003 5/2 monostable G1/8 solenoid valve, line 120, external pilot and spring return

€31.64
Tax included Delivery in 1 to 5 working days.

(25.73 € No tax)

Aircomp line 120 5/2 monostable pneumatic solenoid valve, with G1/8 ports, separate pilot supply and spring return. End-of-stock item.

Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1202125003

€25.73 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

5/2 solenoid valve with one solenoid, spring return and pilot assisted by an external supply (EV 1/8" 22 5 SA ML OO P in the Aircomp catalogue). The pilot air comes in through its own port, so the valve switches even with zero or very low pressure in the main circuit; the spring returns it to the rest position.

  • Ports: G1/8
  • Working pressure: 0 to 10 bar
  • Pilot supply pressure: 1 to 10 bar
  • Pilot port: M5 or Ø4 push-in fitting
  • 22 mm coil, sold separately
  • Weight: 0.087 kg

Source: Aircomp Valves technical catalogue.

1202125003

Specific References

MPN
1202125003
