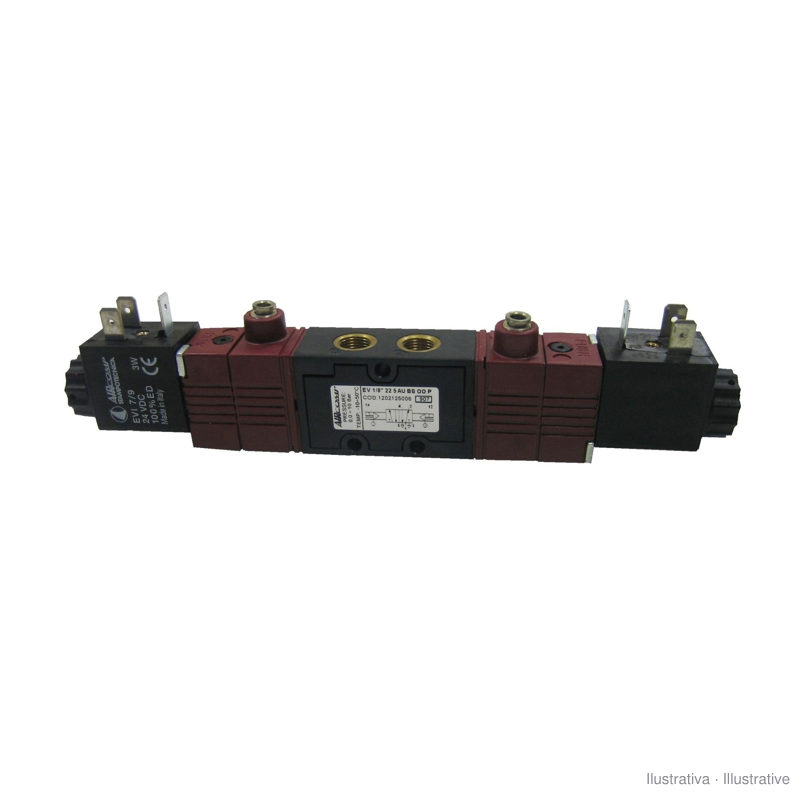

Aircomp 1202126006 5/3 pressurised centre G1/8 solenoid valve, line 120, with external pilot
search
  • Aircomp 1202126006 5/3 pressurised centre G1/8 solenoid valve, line 120, with external pilot

Aircomp 1202126006 5/3 pressurised centre G1/8 solenoid valve, line 120, with external pilot

€49.14
Tax included Delivery in 1 to 5 working days.

(39.95 € No tax)

Aircomp line 120 5/3 pressurised centre pneumatic solenoid valve, with G1/8 ports and separate pilot air supply. End-of-stock item.

Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1202126006

€39.95 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

5-way, 3-position solenoid valve, with a solenoid on each side, spring centring and pilot assisted by an external supply (EV 1/8" 22 6 SA RC CP P in the Aircomp catalogue). In the centre position, the supply goes to both outlets 2 and 4 at the same time and the exhausts are closed.

  • Ports: G1/8
  • Working pressure: 0 to 10 bar
  • Pilot supply pressure: 2 to 10 bar
  • Pilot port: M5 or Ø4 push-in fitting
  • 22 mm coils, sold separately: 12 V DC, 24 V AC, 110 V AC or 220 V AC
  • Weight: 0.118 kg

On a single-rod cylinder, a pressurised centre makes the rod extend slowly because of the area difference; please check this is the behaviour you want.

Source: Aircomp Valves technical catalogue.
