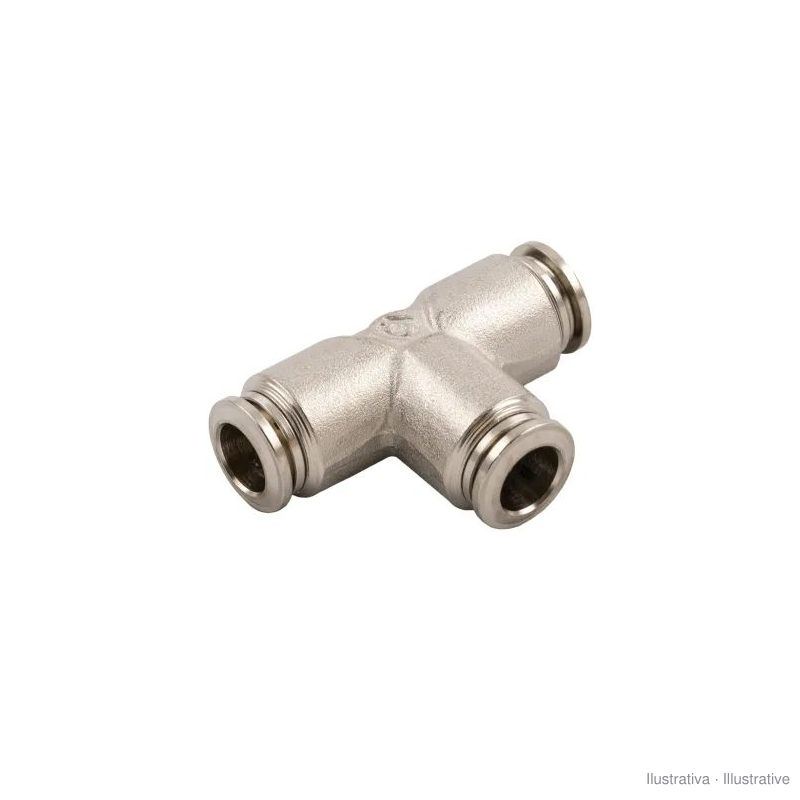

Push-in union tee with metal ring (Aignep 57230)

Name: Push-in union tee with metal ring (Aignep 57230)
Availability: InStock

€1.82

Tax included Delivery in 1 to 5 working days.

(1.48 € No tax)

Tube-to-tube push-in tee from the Aignep 57000 series, nickel-plated brass, for Ø4 or Ø8 mm tube. End-of-stock item.

Tube: Ø4 mm

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 57230 4

€1.48 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Description
Product Details

Union tee from the Aignep 57000 series (code 57230), the push-in range with a metal release ring. All three ports are push-in, for the same tube diameter, and it is used to branch a compressed air or vacuum line.

Nickel-plated brass body and release ring, AISI 301 stainless steel collet, NBR seals
Pressure -0.99 to 20 bar
Temperature -20 to 80 °C
Polyamide PA6, PA11 or PA12, polyethylene or polyurethane tube (preferably 98 Shore A)

Two sizes are available: Ø4 mm tube (57230 4) and Ø8 mm tube (57230 8). Check the outside diameter of the tube you will connect.

Source: Aignep technical catalogue, Catálogo Tarifa 2016.

Reference 57230 4
