Aircomp push-in male branch tee - Line 302

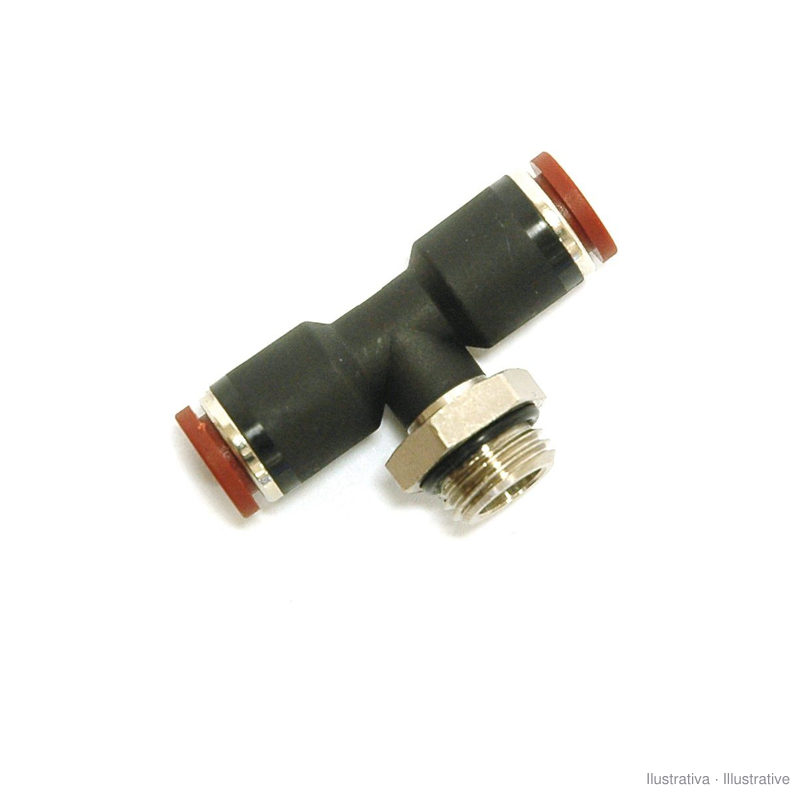

Aircomp central male push-in tee, parallel thread, Line 302

Name: Aircomp central male push-in tee, parallel thread, Line 302
Availability: InStock

€3.01

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(2.45 € Excluding VAT. VAT at the legal rate applies.)

Aircomp 302.03 push-in tee with G parallel male thread in the centre, for Ø4 to Ø12 mm tube. End-of-stock item.

Thread: G3/8

Tube: Ø10 mm

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 302031038

€2.45 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Aircomp central male tee, series 302.03 (Line 302, parallel thread). The male thread is in the middle with a tube outlet on each side: screwed into a port, it splits the air from that port into two tubes, for example to feed two valves or two cylinders.

For compressed air and vacuum (down to -750 mmHg); not for other gases or liquids
Working pressure: 0 to 16 bar
Temperature: -20 to 80 °C
Recommended tube: nylon or polyurethane

Sizes (tube and thread): Ø4 mm with G1/8; Ø6 mm with G1/8; Ø8 mm with G1/8 or G1/4; Ø10 mm with G3/8; Ø12 mm with G1/2.

If you need one outlet in line with the thread and one to the side, look for the lateral tee (series 302.07).

Source: Aircomp Raccordi technical catalogue, version 2.0, April 2011.

Reference 302031038
