Push-in 90° male elbow fitting

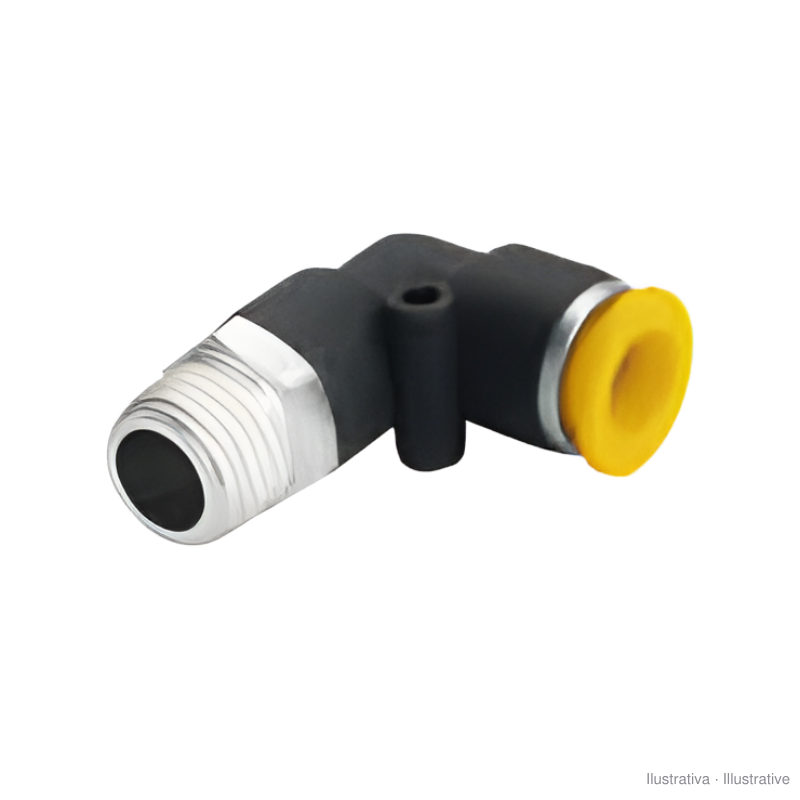

90° elbow for compressed air circuits: one end has a male thread that screws into a cylinder, valve or manifold; the other is a push-in socket for pneumatic tube. It takes the tube away from the component at a right angle without bending it.

Sizes available (tube - thread):

• Ø4 mm: M5 and 1/8"
• Ø6 mm: M5, 1/8" and 1/4"
• Ø8 mm: 1/8", 1/4" and 3/8"
• Ø10 mm: 1/4" and 3/8"
• Ø12 mm: 1/4", 3/8" and 1/2"

Choose by the outside diameter of the tube and the port thread. Also check whether the port takes a parallel or taper thread.
