Pack of 6 pcs - Swivel push-in elbow, tapered male "Universal Short" R 1/8" for Ø8 mm tube (Aignep 55111)
search
  • Pack of 6 pcs - Swivel push-in elbow, tapered male "Universal Short" R 1/8" for Ø8 mm tube (Aignep 55111)

Pack of 6 - Swivel push-in male elbow, taper R 1/8" for Ø8 mm tube (Aignep 55111)

€4.36
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(3.55 € Excluding VAT. VAT at the legal rate applies.)

Technopolymer swivel push-in elbow, R 1/8" taper thread and Ø8 mm tube, from the Aignep 55000 series. Pack of 6, end of stock.

Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 55111 8-1/8-L6

€3.55 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

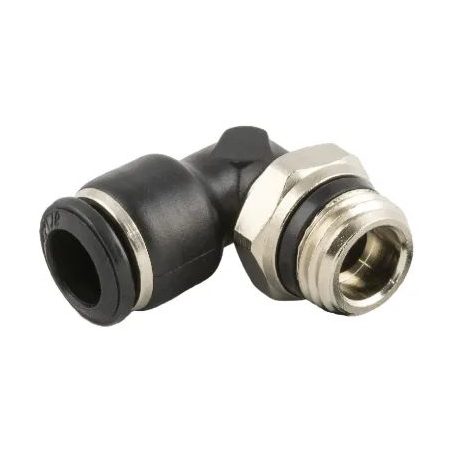

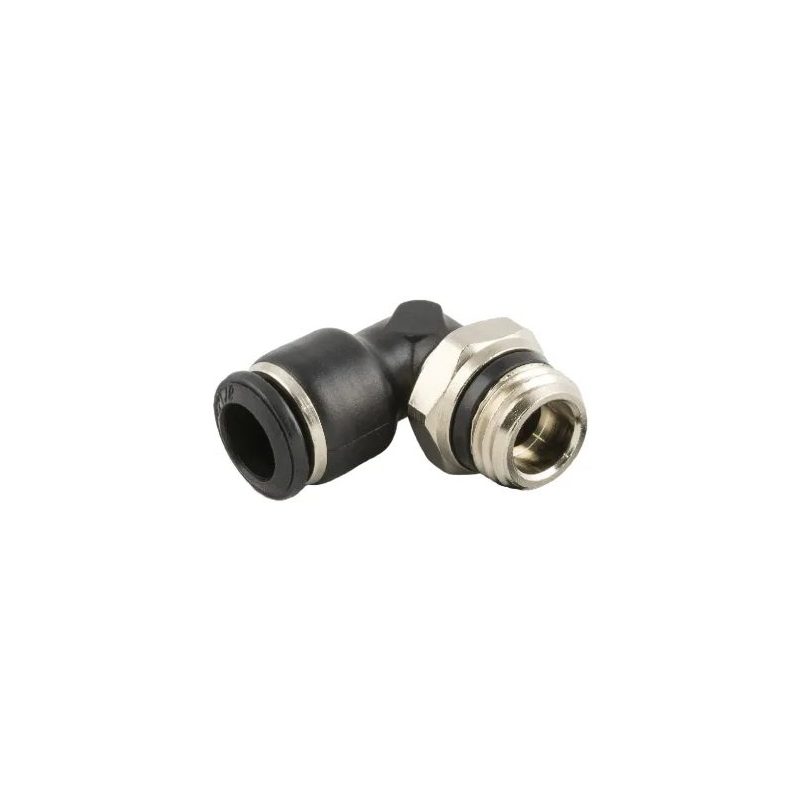

90° elbow from the Aignep 55000 series (code 55111 8-1/8), with an R 1/8" male taper thread on one side and a push-in socket for Ø8 mm tube on the other. The body swivels after tightening, so the tube outlet can be turned without loosening the thread. It fits pneumatic cylinders, valves and manifolds.

  • Technopolymer body, acetal resin release ring, AISI 301 stainless steel collet, NBR seals
  • Pressure -0.99 to 20 bar
  • Temperature -20 to 80 °C

Sold in a fixed pack of 6. The taper thread seals on the thread itself; check that the port is a 1/8" BSP thread.

Source: Aignep technical catalogue, Catálogo Tarifa 2016.

55111 8-1/8-L6
