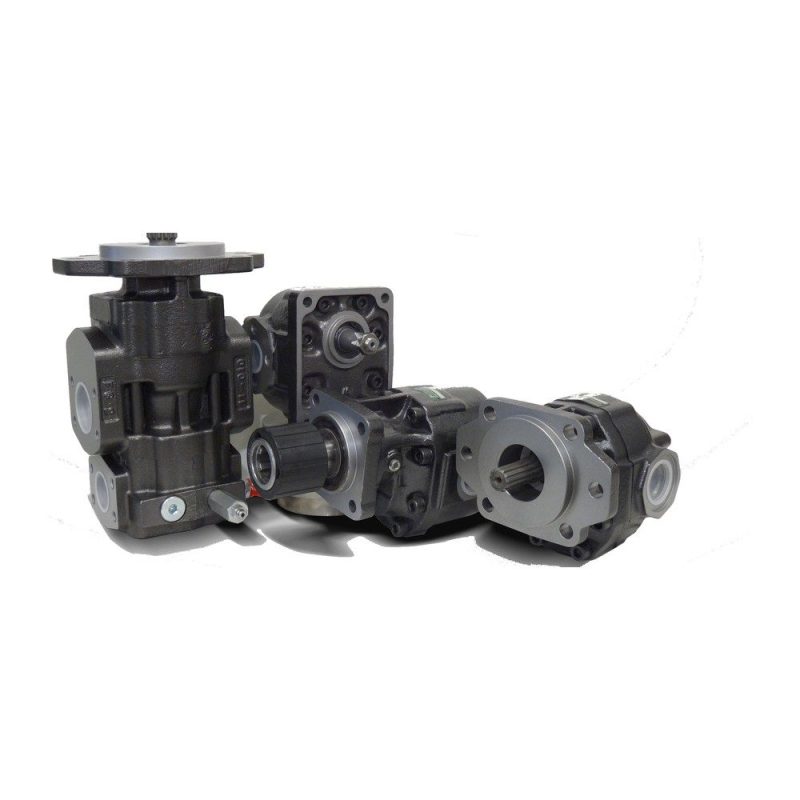

Ronzio W3 gear pump 030W****00D/S

Name: Ronzio W3 gear pump 030W****00D/S
Availability: InStock

€518.61

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(421.63 € Excluding VAT. VAT at the legal rate applies.)

Ronzio W3 cast iron gear pump, 35 to 64 cm³/rev, up to 280 bar continuous.

Displacement: 35 cc

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.3023.030W0035

€421.63 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The W3 is Ronzio's group 3 series with cast iron body and covers, for heavy duty. It has axial compensation and a volumetric efficiency above 95%.

Displacements: 35, 45, 55 and 64 cm³/rev
Maximum continuous pressure: 280 bar (35), 250 bar (45), 230 bar (55) and 200 bar (64)
Flow at 1500 rpm: 51.5 to 95.9 l/min
Mineral oil, -10 °C to 80 °C

The full pump code is on the nameplate. Before ordering, check it, together with the direction of rotation, the flange and the shaft of the pump you are replacing.

Source: Ronzio W3 (Cast Iron Pumps and Motors) technical catalogue, revision 03.16.

Reference 1.3023.030W0035
