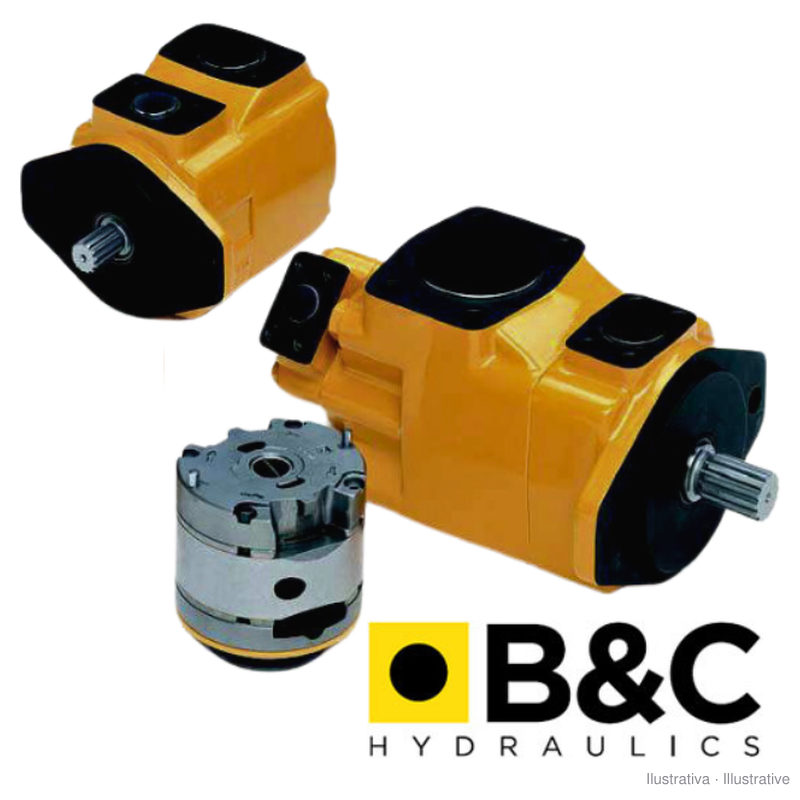

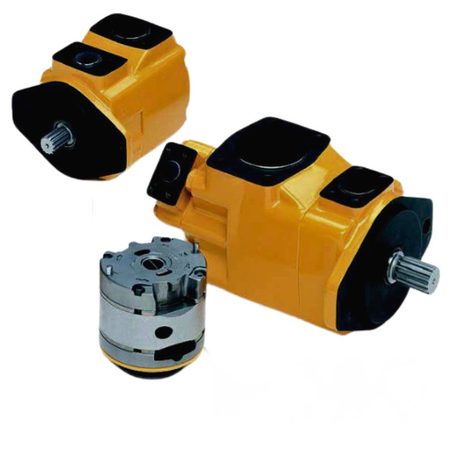

B&C TQ / TV vane pump

* Preço sob consulta *
Price including VAT at the legal rate

B&C TQ and TV fixed vane pumps with rear shaft output (thru-drive), to couple another pump behind: TQ02, TV02 and TV04.

B&C pump: TQ02B21A203A
Quantity
Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5240.TQ02B21A203A

Request a commercial proposal

The B&C TQ and TV are fixed displacement vane pumps with through drive: the shaft also comes out at the rear, on a flange where a second pump (vane, gear or piston) is mounted. One motor then drives both. The 10-vane TQ copes better with pressure peaks; the 12-vane TV is quieter.

  • TQ02B21A203A: 67.5 cc/rev, 79.3 l/min at 1200 rpm, up to 210 bar and 2500 rpm
  • TV02B17A203A: 55.2 cc/rev, 64.2 l/min at 1200 rpm, up to 175 bar and 1800 rpm
  • TV04B38A203A: 121.6 cc/rev, 139.9 l/min at 1200 rpm, up to 175 bar and 1800 rpm
  • All three: outlet A (opposite inlet) and shaft 203, straight keyed

Before choosing, check which rear flange you need (SAE A, B or C) for the pump that will be coupled.

Source: B&C TQ/TV series technical catalogue, 2008.

1.5240.TQ02B21A203A

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (3)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
TQ02B21A203A
1.5240.TQ02B21A203A
On request
TV02B17A203A
1.5240.TV02B17A203A
On request
TV04B38A203A
1.5240.TV04B38A203A
On request
