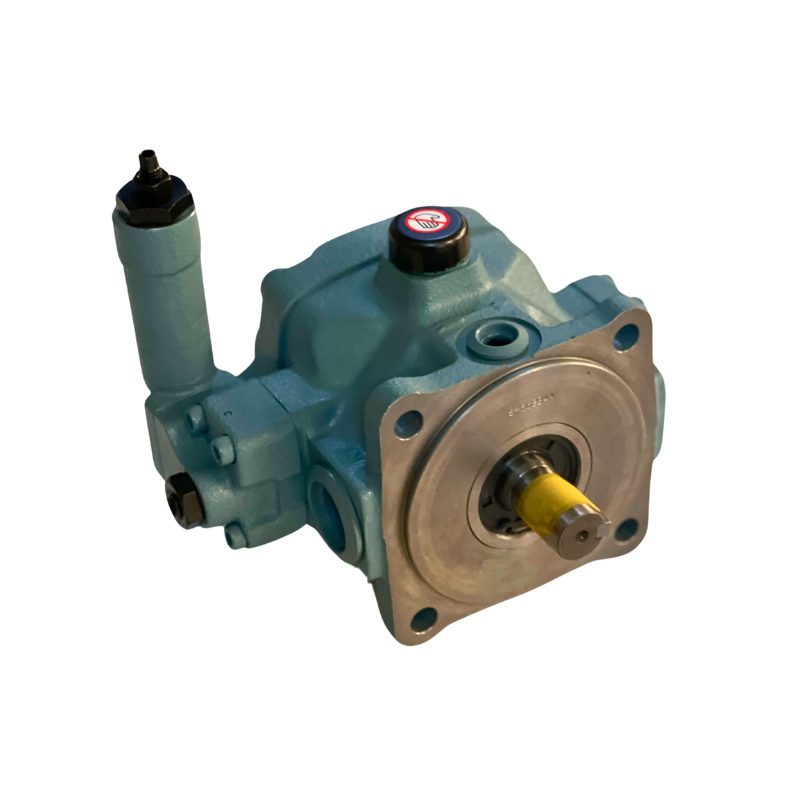

Nachi VDC-1B-1A5-E6234A vane pump
* Price on request *
Tax included
Nachi VDC variable displacement vane pump, 16.7 cc/rev, with pressure control from 70 to 140 bar and flange mounting.
The VDC is the Nachi variable displacement vane pump series for higher pressures, up to 14 MPa. As with other compensated pumps, the flow drops by itself when the circuit reaches the set pressure.
- Displacement: 16.7 cc/rev; no-load flow 25 l/min at 1500 rpm and 30 l/min at 1800 rpm
- Pressure adjustment (code 5): from 7 to 14 MPa (70 to 140 bar); allowable peak 21 MPa
- Speed: from 800 to 1800 rpm, clockwise rotation viewed from the shaft
- Size 1, flange mounting (B); weight about 9.5 kg
- Above 7 MPa, the manufacturer recommends ISO VG68 oil
The suffix E6234A identifies the version; compare it with the rating plate of the pump you are replacing. The Nachi VDC catalogue is in the attachments.
Source: Nachi Standard Hydraulic Equipment technical catalogue, H1000E-5, 2015.09.
NAC.VDC1B1A5E6234A
