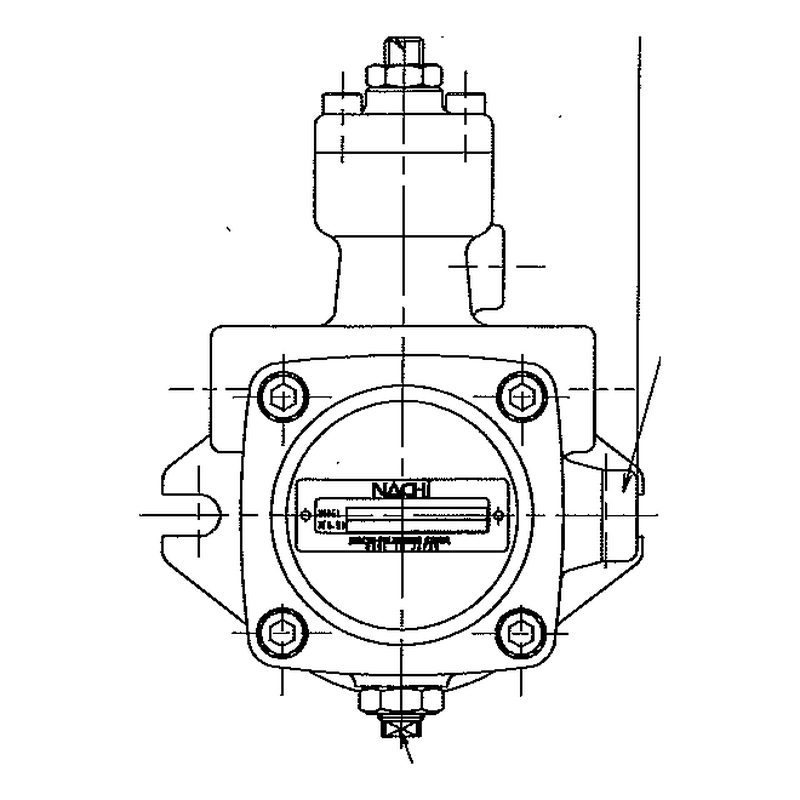

Nachi VDS-0B-1A4-E6234A vane pump, 8 cc/rev, 65-105 bar

Name: Nachi VDS-0B-1A4-E6234A vane pump, 8 cc/rev, 65-105 bar
Brand: Nachi
SKU: NAC.VDS0B1A4E6234A
Price: 759.01 EUR
Availability: InStock

€759.01

Price including VAT at the legal rate

(617.09 € Excluding VAT. VAT at the legal rate applies.)

Nachi VDS variable displacement vane pump, 8 cc/rev, with pressure control from 65 to 105 bar and flange mounting.

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. NAC.VDS0B1A4E6234A

€617.09 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Variable displacement vane pump from the Nachi VDS series, the smallest of the brand, used in power packs for machine tools and small presses. When the circuit reaches the set pressure, the compensator reduces the flow and the pump holds the pressure while drawing very little power.

Displacement: 8 cc/rev (8.3 cc/rev in the series catalogue), about 15 l/min at 1800 rpm with no load
Pressure adjustment of this version (code 4): from 65 to 105 bar
Flange mounting (B); speed from 800 to 1800 rpm, clockwise rotation viewed from the shaft
Ports Rc 1/2 (inlet), Rc 3/8 (outlet) and Rc 1/4 (drain)

Connect the drain straight to the tank, below the oil level. The suffix E6234A identifies the version: compare it with the plate of the pump fitted.

Source: Nachi Standard Hydraulic Equipment technical catalogue, H1000E-5, 2015.09.
