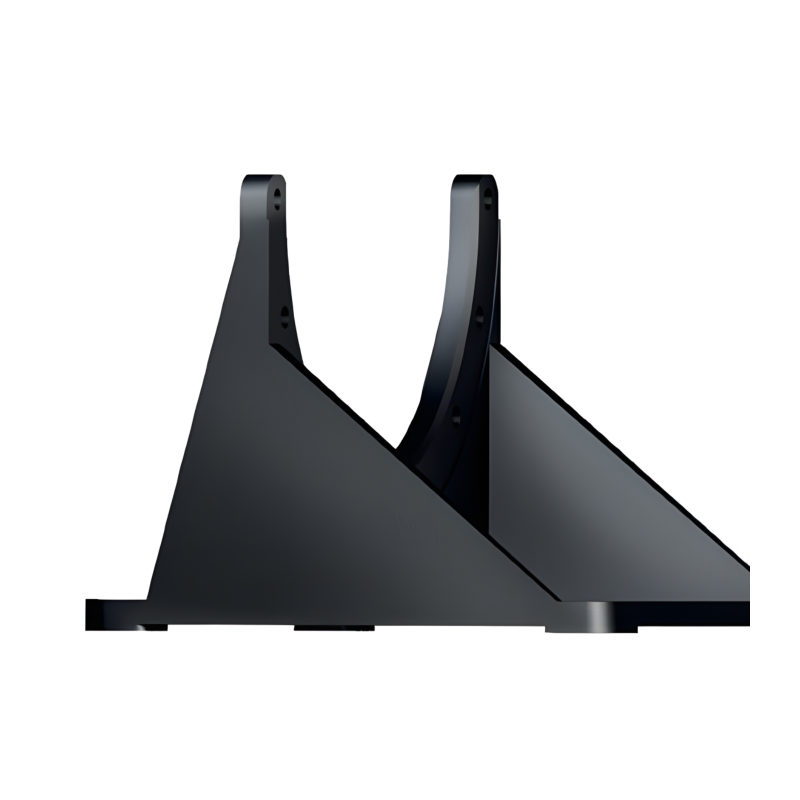

KTR PTFS foot flange for bellhousings

* Price on request *

Tax included

KTR PTFS foot flange, bolted to the bellhousing to support the motor-pump unit on its base. In aluminium or nodular iron (GGG).

Model: PTFS 300 (foot flange)

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. KTR.PTFS300

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The KTR PTFS foot flange fits between the electric motor and the bellhousing and is used to fix the motor-pump unit to the base or to the tank through the bellhousing itself. It follows VDMA 24561, part 1.

The model number is the bellhousing size it is made for: PTFS 300 for 300 mm flange bellhousings, PTFS 450 for 450 mm and PTFS 550 for 550 mm. The GGG versions are nodular iron; the others are aluminium. The power shown in the list (37 kW or 55 kW at 1500 rpm) is that of the usual IEC motor for that bellhousing size.

For the flange to take its full load, bolt every hole to the bellhousing. To reduce vibration, KTR offers the DSFS damping rods in the same size.

Source: KTR Hydraulic Components technical catalogue, 04/18.
