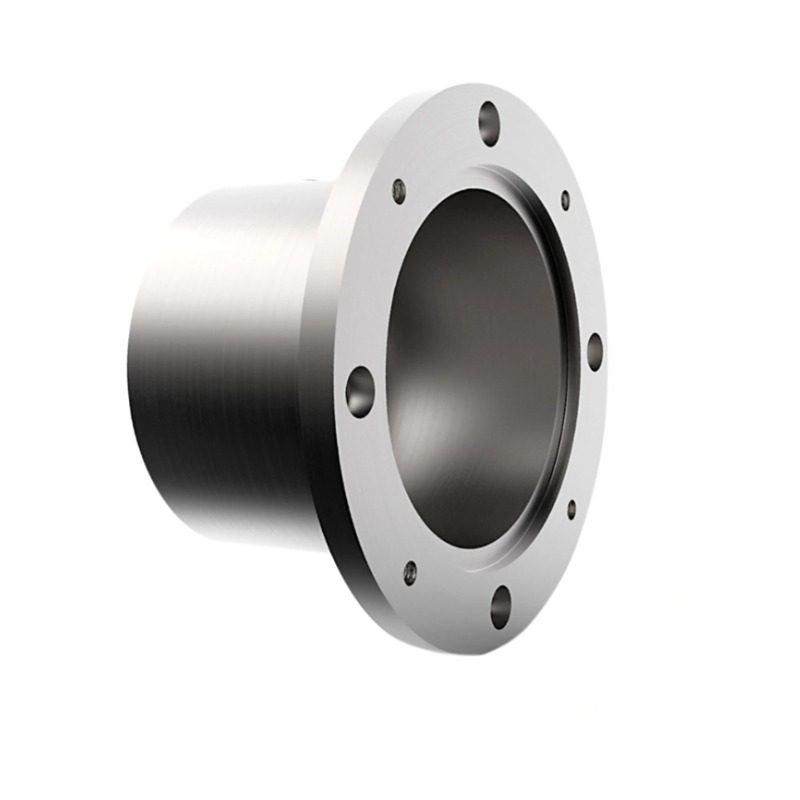

KTR PFL 450/9/1 bellhousing - 450 mm - for machining

* Price on request *

Tax included

KTR aluminium bellhousing for IEC motors with 450 mm flange, with the pump side left for machining.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. KTR.PFL450/9/1

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

KTR aluminium bellhousing to connect an IEC electric motor with a 450 mm B5 flange to a hydraulic pump, with the coupling inside. In the catalogue, the PFL 450/9 is listed for 225S and 225M motors, with a 60 × 140 mm shaft (37 to 45 kW at 1,500 rpm).

It comes with the pump side unmachined: the spigot and the holes are machined to suit the flange of the pump you will fit. The dimension table is in the attached catalogue.

Source: KTR Hydraulic Components technical catalogue, 04/18.
