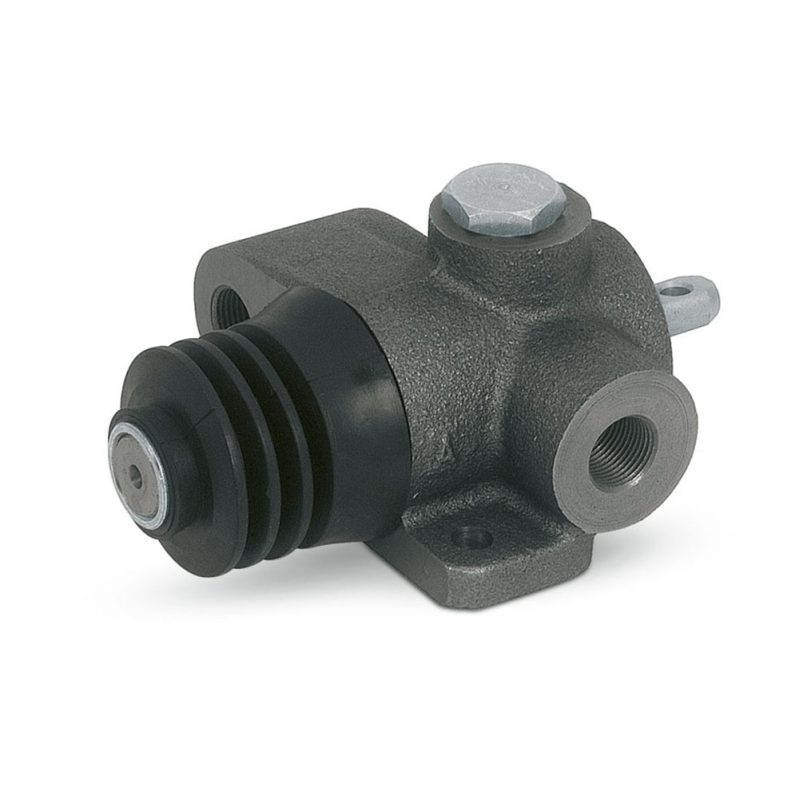

Marchesini V-FCR 1T end-of-stroke valve, normally open

Name: Marchesini V-FCR 1T end-of-stroke valve, normally open
Brand: Oleodinamica Marchesini
Availability: InStock

€120.29

Tax included Delivery in 1 to 5 working days.

(97.8 € No tax)

Marchesini V-FCR 1T 3/8" end-of-stroke valve, normally open, which cuts off the flow when the plunger is pulled or pushed.

End-of-stroke valves: 3/8" - V0824

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA11.V0824

€97.80 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

Normally open, mechanically operated end-of-stroke valve: when the plunger is pulled or pushed, for example by the arm itself or by the part reaching the end of its travel, the passage from P to A closes at once and the actuator stops. In the opposite direction, from A to P, a check valve lets the oil flow freely so that the actuator can return.

Code: V0824 (V-FCR 1T 60)
Connections: G 3/8"
Maximum flow: 60 l/min
Maximum pressure: 350 bar
Cast iron body, hardened and ground steel internals, NBR seals
Weight: about 1.6 kg

Connect P to the directional valve and A to the circuit or the actuator. The Marchesini catalogue, with dimensions and pressure drop curves, is in the attachments.

Source: Oleodinamica Marchesini technical catalogue, section 13 End stroke valves, 2008.
