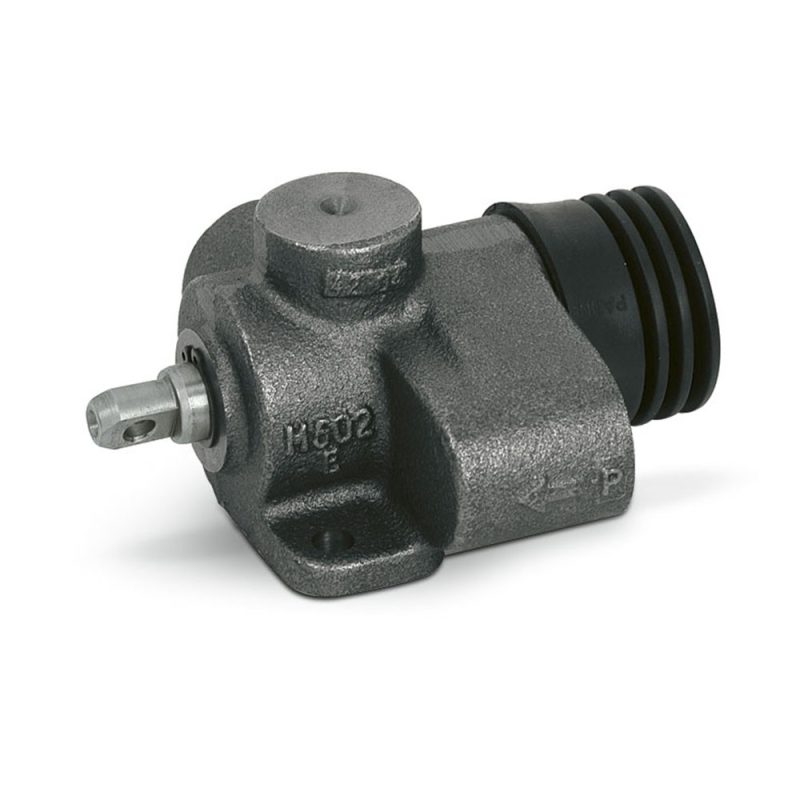

Marchesini V-FCR 2T end-of-stroke valve, normally closed

Name: Marchesini V-FCR 2T end-of-stroke valve, normally closed
Brand: Oleodinamica Marchesini
Availability: InStock

€112.93

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(91.82 € Excluding VAT. VAT at the legal rate applies.)

Marchesini V-FCR 2T 1/2" end-of-stroke valve, normally closed, which opens the passage when the plunger is pulled or pushed.

End-of-stroke valves: 1/2" - V0822

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA11.V0822

€91.82 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

Normally closed, mechanically operated end-of-stroke valve: at rest the passage between A and P is closed; when the plunger is pulled or pushed, the valve opens and oil flows in both directions. It is used to let oil through at a given point in a machine's travel, for example to start the next movement.

Code: V0822 (V-FCR 2T 80)
Connections: G 1/2"
Maximum flow: 80 l/min
Maximum pressure: 350 bar
Cast iron body, hardened and ground steel internals, NBR seals
Weight: about 1.65 kg

A and P can be connected either way round to the directional valve and the circuit. The Marchesini catalogue, with dimensions and pressure drop curves, is in the attachments.

Source: Oleodinamica Marchesini technical catalogue, section 13 End stroke valves, 2008.
