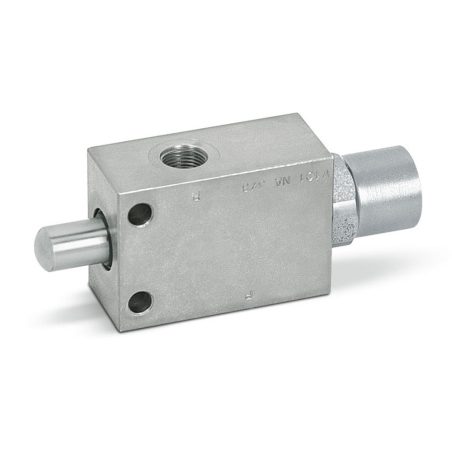

Marchesini VF-NA push-button end-of-stroke valve

Name: Marchesini VF-NA push-button end-of-stroke valve
Brand: Oleodinamica Marchesini
Availability: InStock

€93.94

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(76.37 € Excluding VAT. VAT at the legal rate applies.)

Marchesini VF push-button end-of-stroke valve, normally open, 3/8" and 1/2": it closes the passage when the plunger is pushed in.

End-of-stroke valves: 3/8" - V0817

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA11.V0817

€76.37 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

Push-button end-of-stroke valve, normally open: at rest oil flows freely between A and P; when the plunger is pushed in, for example by the part reaching the end of its travel, the passage closes in both directions.

Codes: V0817 (V-101 3/8" NA, 35 l/min) and V0818 (V-121 1/2" NA, 50 l/min)
Maximum pressure: 350 bar
Maximum plunger stroke: 15 mm; it starts to close at 4 mm
Zinc-plated steel body, hardened and ground steel internals, NBR seals

A and P can be connected either way round to the directional valve and the circuit. When fitting, leave clearance for the plunger stroke and do not use it as the machine end stop. The Marchesini catalogue is in the attachments.

Source: Oleodinamica Marchesini technical catalogue, section 13 End stroke valves, 2008.
