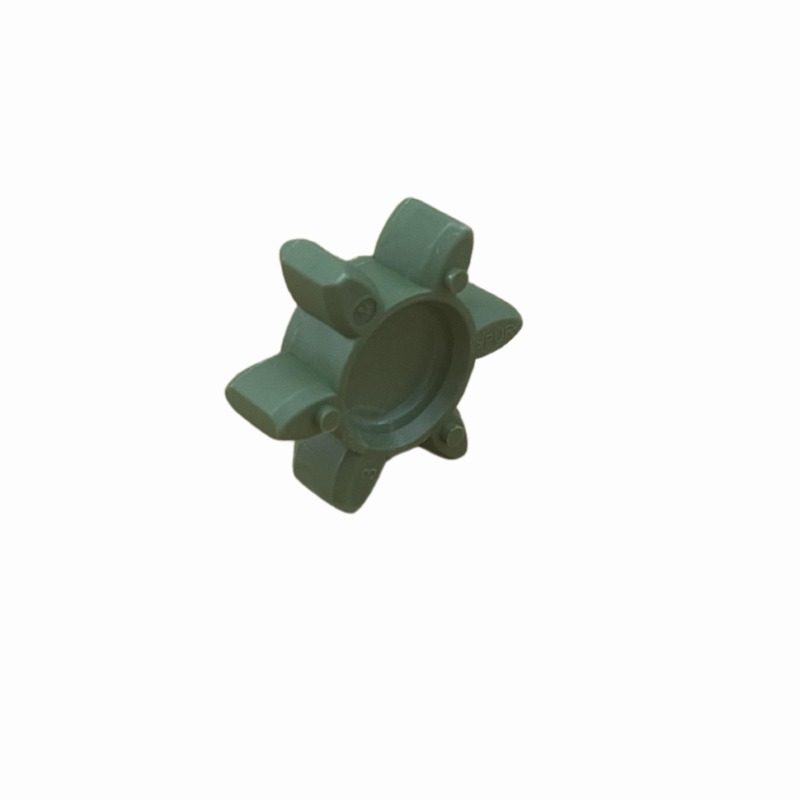

KTR ROTEX GS spider

Name: KTR ROTEX GS spider
Brand: KTR
Availability: InStock

€22.09

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(17.96 € Excluding VAT. VAT at the legal rate applies.)

KTR ROTEX GS spider for backlash-free couplings, sizes 19 to 38, in 98 Shore A, 64 Shore D or 64 Shore D Hytrel.

GS spider: 19 - 64 Sh Hytrel

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. KTR.RS1964GSH

€17.96 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The GS spider is the elastic element of the ROTEX GS, the backlash-free version of KTR's ROTEX coupling, fitted with clamping ring hubs. The spider teeth are straight and fit with preload between the jaws of the two hubs: the coupling transmits the torque without backlash and still damps vibration.

The list has GS spiders in sizes 19, 24, 28 and 38: in 98 Shore A (sizes 28 and 38), in 64 Shore D (size 24) and in 64 Shore D Hytrel (19, 24, 28 and 38). The harder the spider, the more torque it transmits and the less it twists. As a reference, the KTR datasheet gives 160 Nm rated torque for the 98 Shore A spider in size 28 and 325 Nm in size 38.

Choose the same size as the hubs and the same hardness as the spider you are replacing.

Source: KTR ROTEX technical catalogue, 2011.
