Duplomatic CHM3 modular pilot-operated check valve NG6 (CETOP 3)

Name: Duplomatic CHM3 modular pilot-operated check valve NG6 (CETOP 3)
Brand: Duplomatic
Availability: InStock

€153.69

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(124.95 € Excluding VAT. VAT at the legal rate applies.)

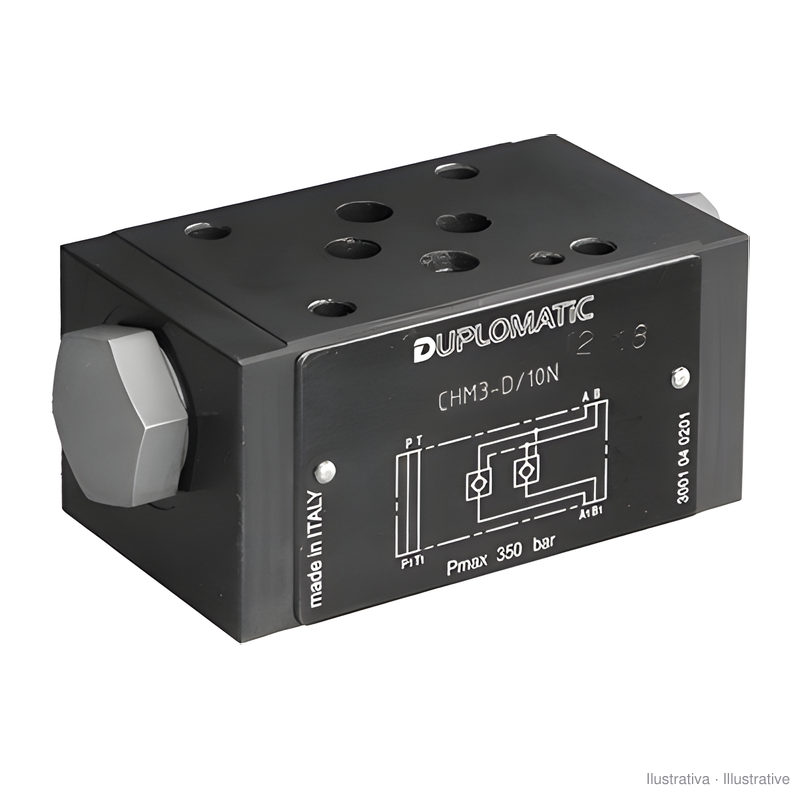

Duplomatic CHM3 modular pilot-operated check valve for NG6 (CETOP 3), locking on A and B, on A only or on B only.

CHM3: CHM3-D/10N - A e B

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.CHM3D

€124.95 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The CHM3 is a modular pilot-operated check valve plate fitted underneath an NG6 (CETOP 3) solenoid valve, on the ISO 4401-03 mounting surface. It holds the cylinder in position: oil coming out of the actuator is blocked until pilot pressure arrives from the other line; in the opposite direction flow is free.

Maximum pressure: 350 bar
Maximum flow: 50 l/min in the locked lines and 75 l/min in the free lines
Check valve cracking pressure: 3 bar
Ratio between the pressure in the locked chamber and the pilot pressure: 3.4:1
NBR seals for mineral oil; weight 1.3 kg

Choose the version by the line that must be held: CHM3-D/10N locks A and B, CHM3-SA/10N A only and CHM3-SB/10N B only. Sealing to the plate is by 4 O-rings 2037 (9.25x1.78).

Source: Duplomatic CHM3 technical catalogue, version 65 251/123 ED.
