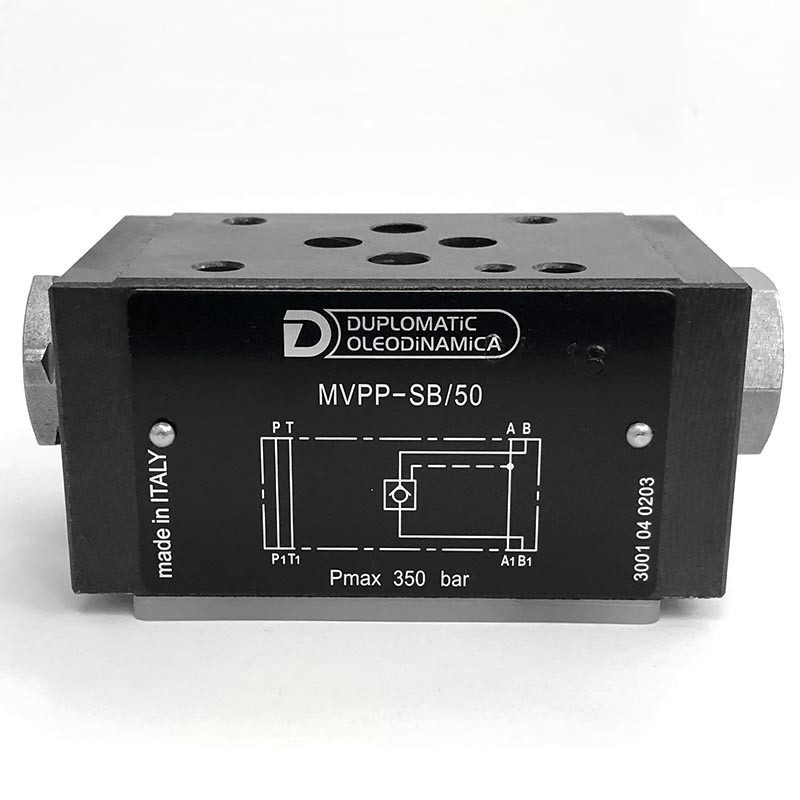

Duplomatic MVPP-SB NG6 (CETOP 3) modular pilot-operated check valve, line B

* Price on request *

Price including VAT at the legal rate

Duplomatic MVPP-SB pilot-operated check valve, modular NG6 (CETOP 3), holding the actuator on line B only, up to 350 bar.

Duplomatic NG6 (CETOP 3): MVPP-SB/50

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.MVPPSB

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

MVPP version with the check valve on line B, to fit under the NG6 (CETOP 3, ISO 4401-03) solenoid valve. Side B of the actuator stays locked until pressure on line A pilots the check valve open; line A flows freely.

Maximum pressure: 350 bar
Maximum flow: 50 l/min on the checked line and 75 l/min on the free lines
Pilot ratio: 3.4:1
Check valve cracking pressure: 3 bar
Weight: 1.3 kg

To lock both sides of the actuator, the version is the MVPP-D.

Source: Duplomatic MVPP technical catalogue, version 65 250/115 ED.
