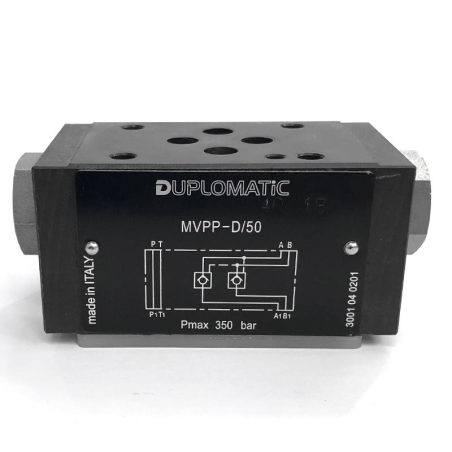

Duplomatic MVPP-D NG6 (CETOP 3) modular double pilot-operated check valve

* Price on request *

Tax included

Duplomatic MVPP-D double pilot-operated check valve, modular NG6 (CETOP 3), locking the actuator on lines A and B, up to 350 bar.

Duplomatic NG6 (CETOP 3): MVPP-D/50

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.MVPPD

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Double pilot-operated check valve in modular version, to fit under the NG6 (CETOP 3, ISO 4401-03) solenoid valve. It has one check valve on A and another on B: with the solenoid valve at rest, the cylinder is locked in both directions, and each check valve opens by the pilot pressure arriving through the opposite line.

Maximum pressure: 350 bar
Maximum flow: 50 l/min on the checked lines and 75 l/min on the free ones
Ratio between locked pressure and pilot pressure: 3.4:1
Check valve cracking pressure: 3 bar
Weight: 1.3 kg

With the solenoid valve, the centre position should connect A and B to tank, so the check valves close properly.

Source: Duplomatic MVPP technical catalogue, version 65 250/115 ED.
