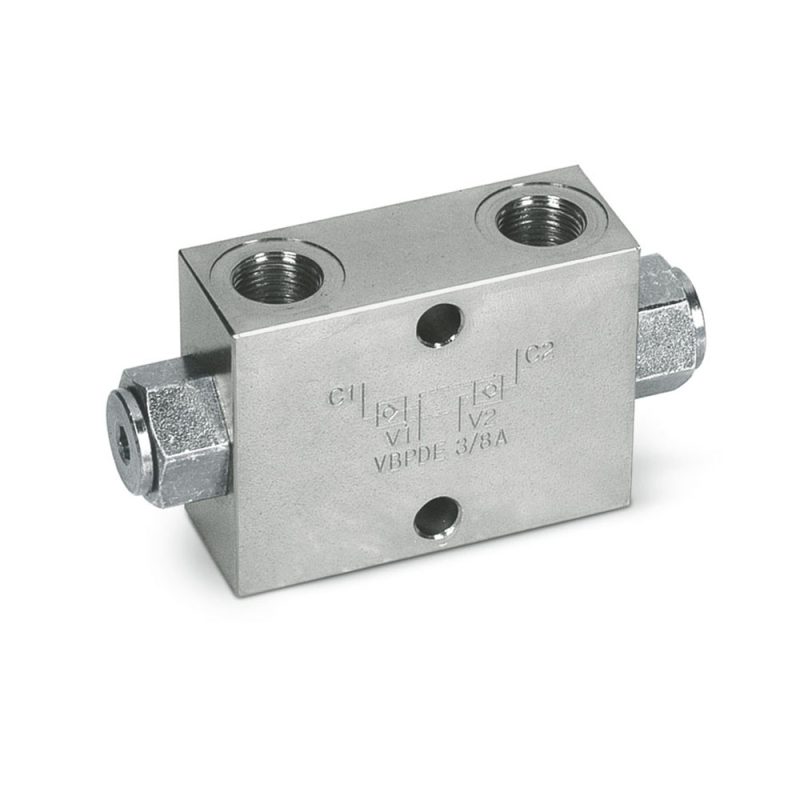

Marchesini VBPDE A double pilot-operated check valve

Name: Marchesini VBPDE A double pilot-operated check valve
Brand: Oleodinamica Marchesini
Availability: InStock

€55.70

Tax included Delivery in 1 to 5 working days.

(45.29 € No tax)

Marchesini VBPDE A double-acting pilot-operated check valve, 1/4" to 3/4".

Check valves: 1/4" - V0178

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0178

€45.29 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBPDE A is Marchesini's type A double pilot-operated check valve: it locks the cylinder in both directions and only lets oil out of one side when the other side receives pressure. Sealing is by a guided cone, with no leakage. The body has through holes for bolting the valve in place.

1/4" (V0178): 20 l/min, pilot ratio 1:5.5
3/8" (V0180): 30 l/min, ratio 1:5.5
1/2" (V0190): 55 l/min, ratio 1:4.5
3/4" (V0191): 100 l/min, ratio 1:3.7

Maximum pressure 350 bar on all sizes. Zinc-plated steel body, hardened and ground steel internal parts, NBR seals. Connect V1 and V2 to the supply and C1 and C2 to the cylinder; check the G port thread before ordering.

Source: Oleodinamica Marchesini general catalogue 2018; Oleodinamica Marchesini technical catalogue, section Double pilot operated check valves.
