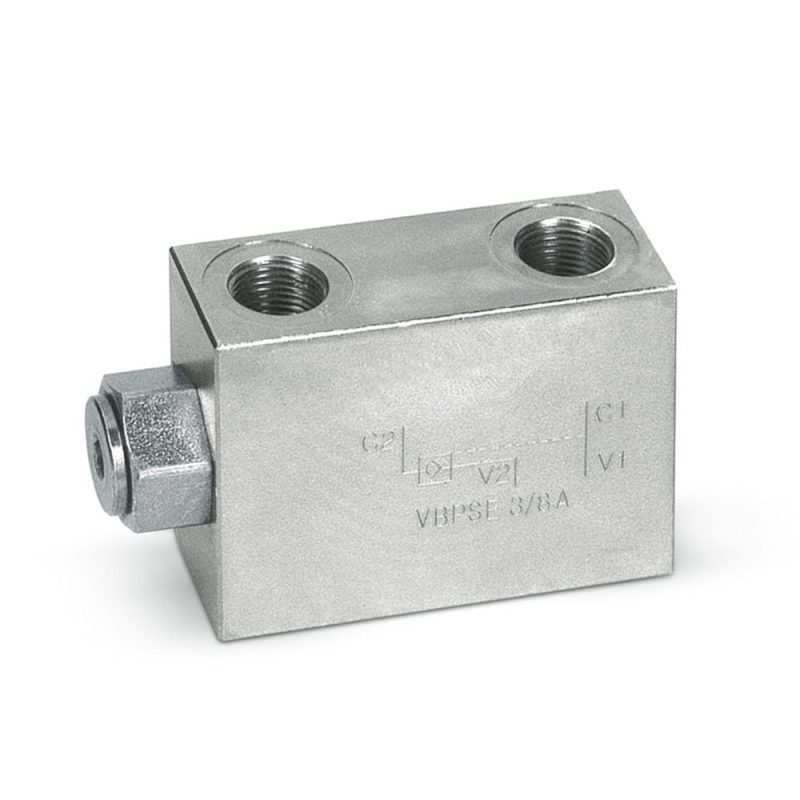

Marchesini VBPSE A single pilot-operated check valve

Name: Marchesini VBPSE A single pilot-operated check valve
Brand: Oleodinamica Marchesini
Availability: InStock

€51.34

Tax included Delivery in 1 to 5 working days.

(41.74 € No tax)

Marchesini VBPSE A single-acting pilot-operated check valve, 3/8" and 1/2".

Check valves: 3/8" - V0274

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0274

€41.74 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBPSE A is Marchesini's 4-way type A single pilot-operated check valve. It holds the cylinder in one direction only: C1 goes to the free-flow side of the actuator, C2 to the side that must be held, and V1 and V2 to the directional valve. Sealing is by a guided cone, with no leakage.

3/8" (V0274): G 3/8" threads, up to 30 l/min, pilot ratio 1:5.5
1/2" (V0276): G 1/2" threads, up to 55 l/min, ratio 1:4.5

Maximum pressure 350 bar. Zinc-plated steel body with through holes for fixing, hardened and ground steel internal parts, NBR seals. 1 bar and 8 bar springs are available on request.

Source: Oleodinamica Marchesini technical catalogue, section Single pilot operated check valves.
