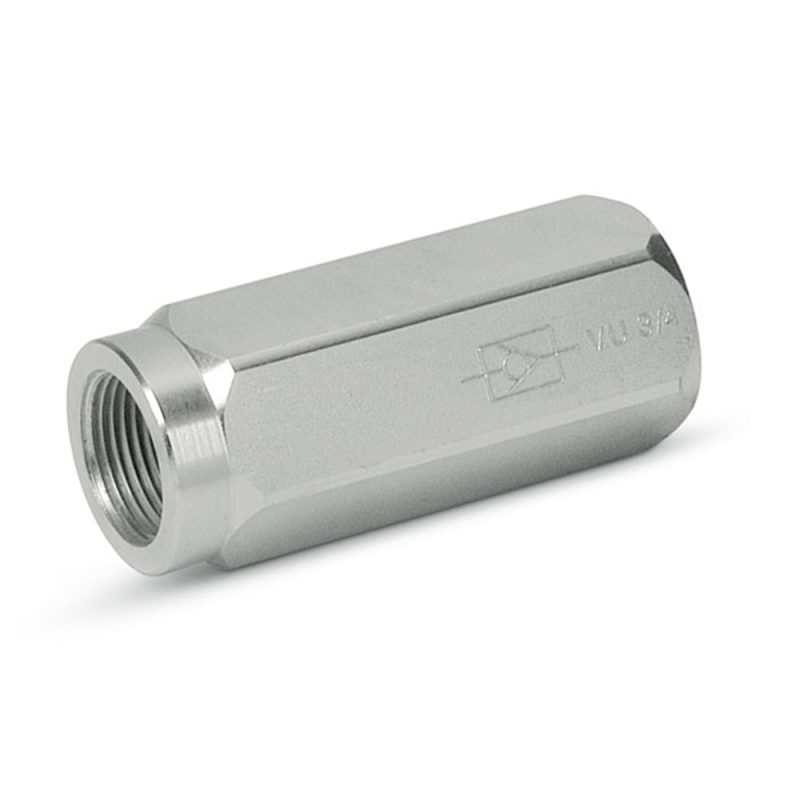

Marchesini VU in-line check valve
search
  • Marchesini VU in-line check valve

Marchesini VU in-line check valve

€10.20
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(8.3 € Excluding VAT. VAT at the legal rate applies.)

Marchesini VU in-line check valve, 1/8" to 2", with the standard spring or with a 3, 5 or 8 bar spring.

Check valves: 1/4" - V0590
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0590

€8.30 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VU lets oil flow freely from V to C and blocks the opposite direction. Sealing is by a guided cone, with no leakage. Hexagonal zinc-plated steel body, hardened and ground steel internal parts.

The code without a slash has the standard spring, with a low cracking pressure (0.4 to 1 bar, depending on size). Versions /3, /5 and /8 open at 3, 5 and 8 bar and are used, for example, to keep part of a circuit under pressure.

  • 1/8" (V0592): 3 l/min
  • 1/4" (V0590): 20 l/min
  • 3/8" (V0600): 45 l/min
  • 1/2" (V0610): 70 l/min
  • 3/4" (V0620): 110 l/min
  • 1" (V0630): 160 l/min
  • 1 1/4" (V0631): 250 l/min
  • 1 1/2" (V0632): 350 l/min
  • 2" (V0633): 650 l/min

Maximum pressure 350 bar up to 1" and 300 bar on the larger sizes. Fit with V on the supply side.

Source: Oleodinamica Marchesini general catalogue 2018; Oleodinamica Marchesini technical catalogue, section Check valves.

1.MA04.V0590

Data sheet

Port thread
G 1
G 1 1/2
G 1 1/4
G 1/2
G 1/4
G 1/8
G 2
G 3/4
G 3/8

Specific References

Internal barcode
2200008700201
MPN
V0590

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (25)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
1/8" - V0592
1.MA04.V0592
On request
1/4" - V0590
1.MA04.V0590
In stock
3/8" - V0600
1.MA04.V0600
In stock
3/8" - V0600/3
1.MA04.V06003
Last units
3/8" - V0600/5
1.MA04.V06005
Last units
3/8" - V0600/8
1.MA04.V06008
In stock
1/2" - V0610
1.MA04.V0610
In stock
1/2" - V0610/3
1.MA04.V0610/3
In stock
1/2" - V0610/5
1.MA04.V0610/5
In stock
1/2" - V0610/8
1.MA04.V0610/8
In stock
3/4" - V0620
1.MA04.V0620
In stock
3/4" - V0620/3
1.MA04.V06203
In stock
3/4" - V0620/5
1.MA04.V06205
In stock
3/4" - V0620/8
1.MA04.V0620/8
In stock
1" - V0630
1.MA04.V0630
In stock
1" - V0630/3
1.MA04.V06303
In stock
1" - V0630/5
1.MA04.V06305
In stock
1" - V0630/8
1.MA04.V0630/8
In stock
1.1/4" - V0631
1.MA04.V0631
In stock
1.1/4" - V0631/3
1.MA04.V06313
In stock
1.1/4" - V0631/5
1.MA04.V06315
In stock
1.1/4" - V0631/8
1.MA04.V0631/8
Last units
1.1/2" - V0632
1.MA04.V0632
In stock
1.1/2" - V0632/5
1.MA04.V06325
Last units
2" - V0633
1.MA04.V0633
Last units
