Duplomatic BFD10, DL3 and MD1D coil

Name: Duplomatic BFD10, DL3 and MD1D coil
Brand: Duplomatic
Availability: InStock

€55.94

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(45.48 € Excluding VAT. VAT at the legal rate applies.)

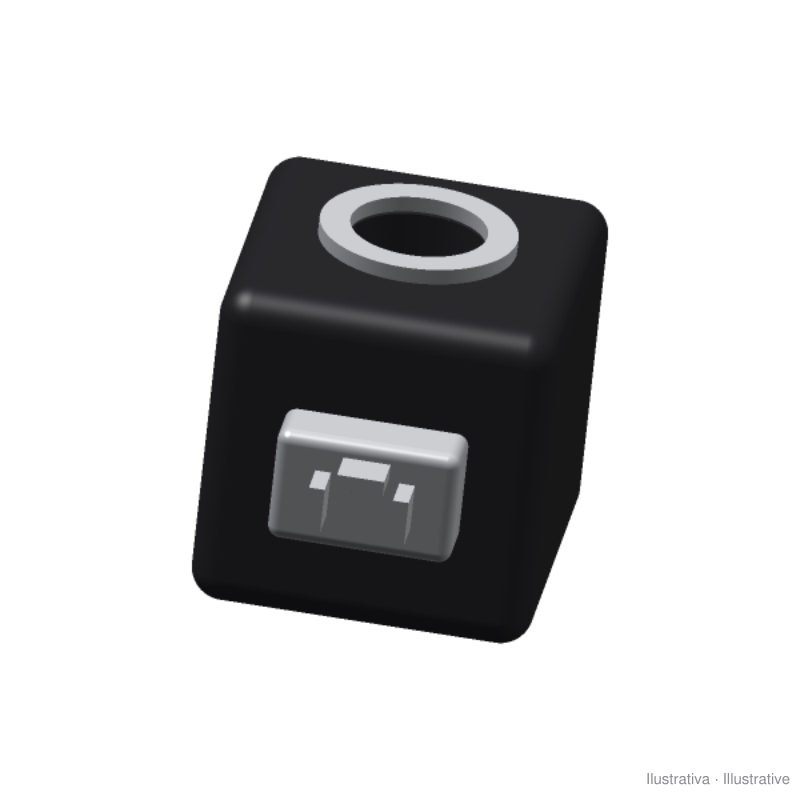

Duplomatic coils with DIN 43650 connector (K1) for BFD10 and DL3 valves (12 or 24 V DC) and MD1D valves (48 V AC).

Coil: BFD10-D12K1

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.BFD10COILD12K1

€45.48 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

Duplomatic replacement coils with DIN 43650 connector (K1), for three valve families.

DL3-D12K1 and DL3-D24K1: for the compact DL3 solenoid valve, NG6 (CETOP 3), widely used on mini power packs and agricultural machines; 12 V DC at 26.5 W and 24 V DC at 27.8 W
BFD10-D12K1 and BFD10-D24K1: for BFD10 valves, 12 or 24 V DC
MD1D-A48K1: for the MD1D solenoid valve, CETOP 3, 48 V AC (60 VA)

Each coil only fits the family given in its code. Check the code, voltage and current type on the old coil before ordering.

Source: Duplomatic DL3 technical catalogue, version 41 211/111 ED; Duplomatic MD1D technical catalogue, version 41 200/101 ED.
