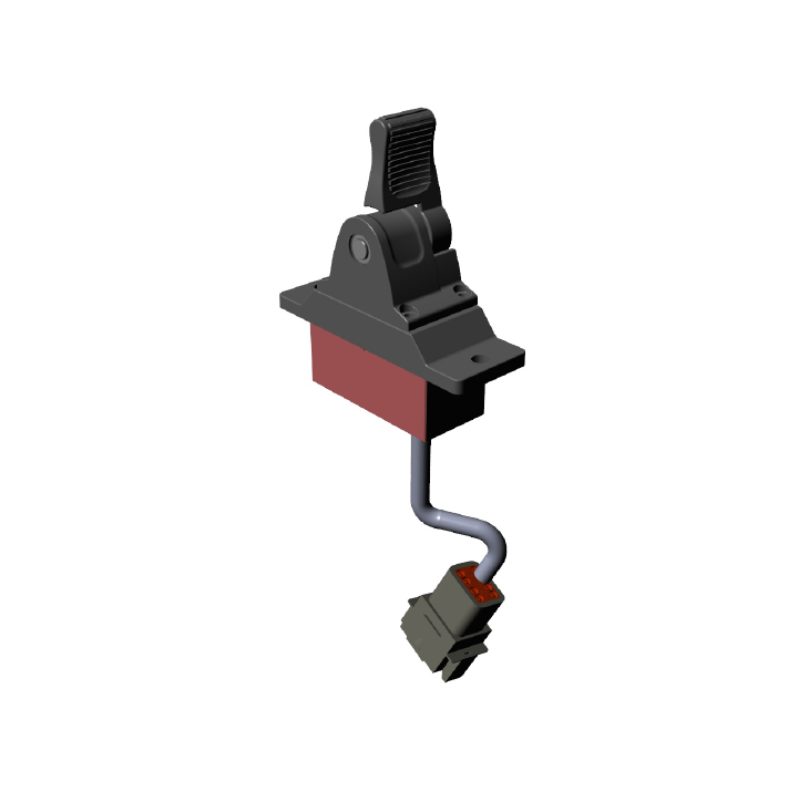

MAP3L finger joystick with friction - marine
€765.52
Tax included
(622.37 € No tax)
MAP3L single-axis electronic finger joystick, marine version, with friction hold and two PWM outputs for one proportional section.
Marine version of the MAP2L finger joystick, single axis (code MAP3L). This one has friction: the paddle stays where you leave it instead of returning to centre. For a lever, there is the MAP3 joystick.
It reads the position with Hall-effect sensors, with no contact and no wear, and drives the two coils of one section of a proportional directional valve directly, with closed-loop current control. It also has a digital output for the unloading valve, which switches on when either side is operated, and a fault output, which switches off if there is a failure.
- Supply: 12 or 24 V DC
- Factory setting: 250 mA minimum and 850 mA maximum on each side, ramps at zero, PWM at 100 Hz, linear curve
- Unloading valve: switches off 0.5 s after the proportional outputs stop
- Connection: 0.2 m cable with Deutsch DT04-8 connector
The values can be changed with the SepSim software and the AISR adapter, sold separately.
Source: Faber-Com PMAP3SSLR data sheet, 07/05/20.
1.FBC.PMAP3SSLF
