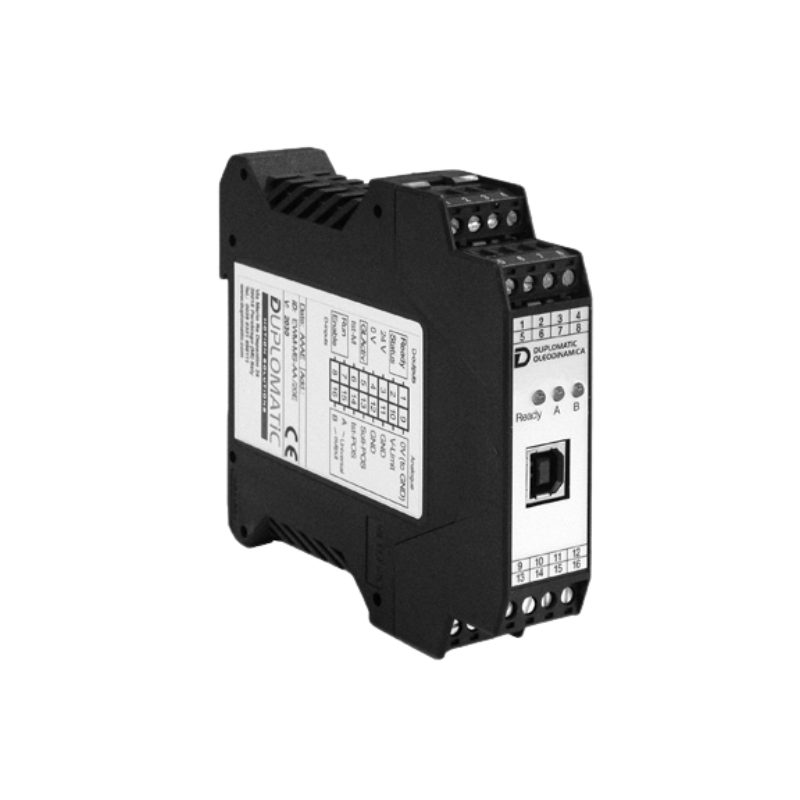

Duplomatic EWM-MS-AA/20M2 synchronisation card
€2,726.01
Price including VAT at the legal rate
(2216.27 € Excluding VAT. VAT at the legal rate applies.)
Duplomatic EWM-MS-AA/20M2 digital card for stroke control and synchronisation of hydraulic axes, with a built-in coil amplifier. One card per axis.
The EWM-MS-AA is a Duplomatic digital card, on DIN EN 50022 rail, for closed-loop stroke control and synchronisation of cylinders or other hydraulic axes. Each card controls one axis: to synchronise two cylinders you need two cards. It works in master-master (up to 2 axes) or master-slave (up to 6 axes), with two positioning modes, SDD and NC.
The M2 version has the power amplifier built in and drives the two coils (A and B) of a proportional valve directly, with a current of 0.5 to 2.6 A, and monitors the coils. The command position, the sensor feedback and the speed come in as 0-10 V or 4-20 mA. The card detects cable break, position error and sensor fault, and has READY and STATUS outputs.
- Supply: 12 to 30 V DC (3 A external fuse on the M2)
- Setup in software only (EWMPC/20), through the USB port
- Case of 120 x 99 x 46 mm, screw terminals, IP20
- Operating temperature: -20 to +60 °C
Source: Duplomatic EWM-MS-AA series 21 technical catalogue, version 89 450/117 ED.
D.EWMMSAA20M2
Specific References
- MPN
- EWM-MS-AA/20M2
