NEM pilot-operated 2/2 poppet solenoid valve, 0512 to 0514 (cartridge)

Name: NEM pilot-operated 2/2 poppet solenoid valve, 0512 to 0514 (cartridge)
Brand: NEM Hydraulics
Availability: InStock

€115.61

Tax included Delivery in 1 to 5 working days.

(93.99 € No tax)

NEM 2/2-way pilot-operated poppet solenoid valves, in SAE 08, 10 and 12 cartridges, normally open or closed, from 40 to 150 l/min and 350 bar.

Valve: 2/2 pilot-operated valve NO 40 l/min 350 bar CAV 08-2 [0512000000]

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.1339.0512000000

€93.99 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

NEM 2-way 2-position pilot-operated poppet cartridge solenoid valves, with leakage of only 0.25 cm³/min. The coil is ordered separately.

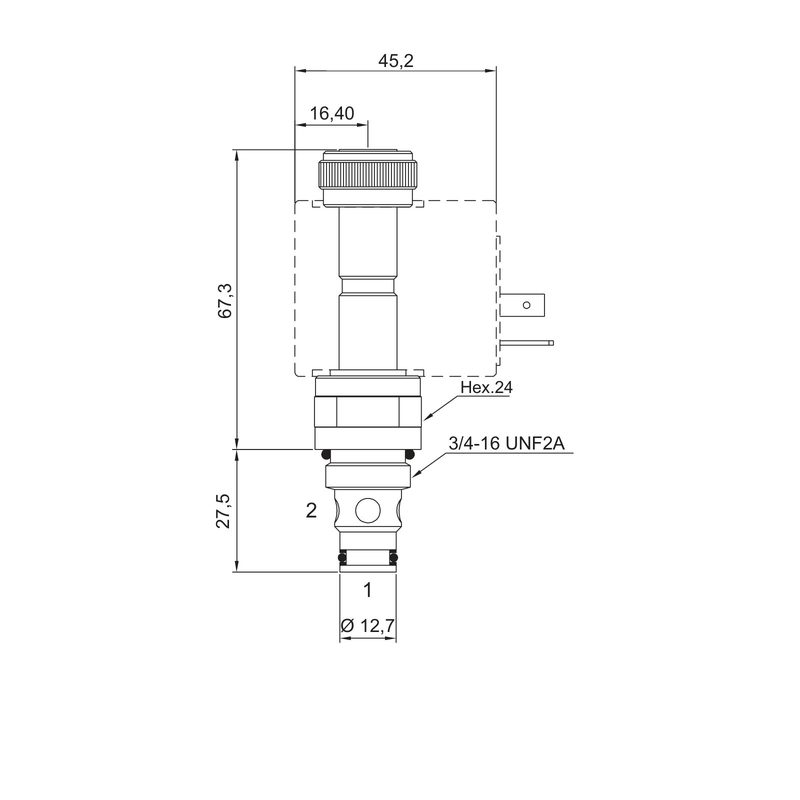

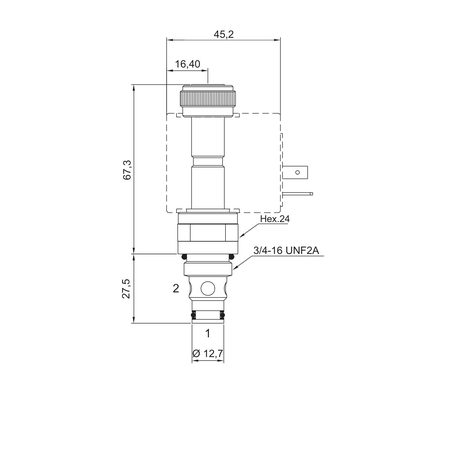

0512000000 (NO) and 0512100000 (NC): SAE 08, cavity 08-2 (3/4"-16 UNF), 40 l/min
0513000000 (NO) and 0513100000 (NC): SAE 10, cavity 10-2, 60 l/min
0514000000 (NO) and 0514100000 (NC): SAE 12, cavity 12-2 (1-1/16"-12 UNF), 150 l/min
Maximum pressure: 350 bar; NBR and PTFE seals

NO means normally open (flow passes with the coil de-energised) and NC normally closed. Check the cavity and whether you need NO or NC.

Source: NEM General catalogue Vol. 1, Cartridge Valves technical catalogue, version DT001GB001 IR2, 10.2018.
