Duplomatic DS5M solenoid valve with spool monitoring, NG10 (CETOP 5)

Duplomatic direct-acting directional solenoid valve, ISO 4401-05 subplate mounting, NG10 (CETOP 5), with a sensor that monitors the main spool position and gives a binary signal when the valve switches. It is used on machines with safety requirements, such as presses and injection moulding machines: the DS(P)*M family is TÜV certified to ISO 4413 and to the EN standards for presses and for plastics and rubber machines.

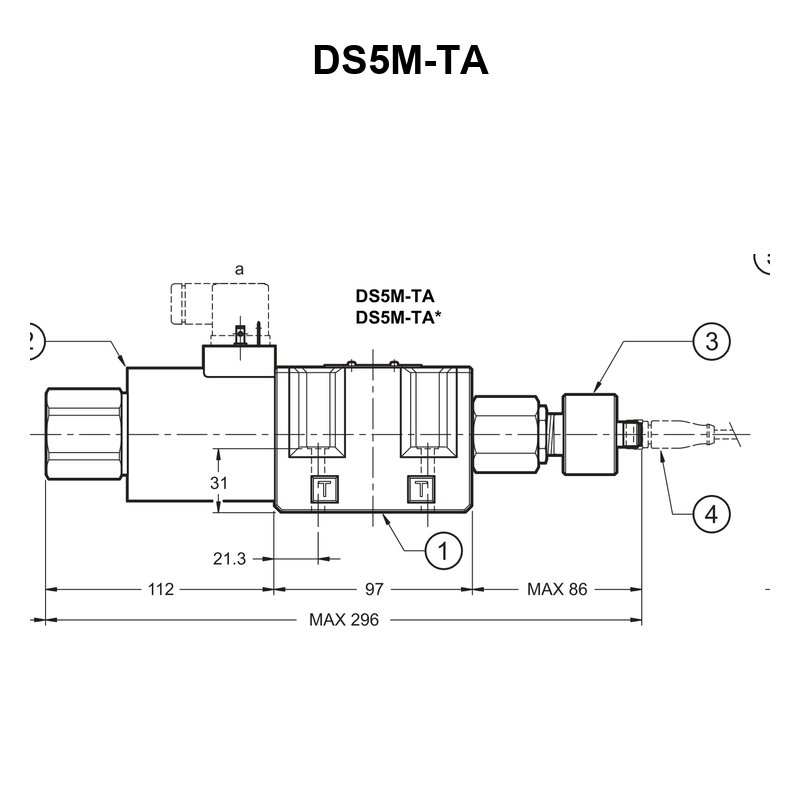

This version is the DS5M-TA100/20N-D24K1/MB:

• one coil, two positions with return spring (TA100 spool);
• 24 V DC coil with EN 175301-803 (ex DIN 43650) connector;
• sensor on position "b" (MB), NBR seals, series 20;
• up to 320 bar on ports P, A and B and 120 l/min.

For safety reasons, it has no manual override and cannot be disassembled. Before ordering, check the full code on the nameplate.

Source: Duplomatic DS(P)*M technical catalogue, version 41 505/217 ED.
