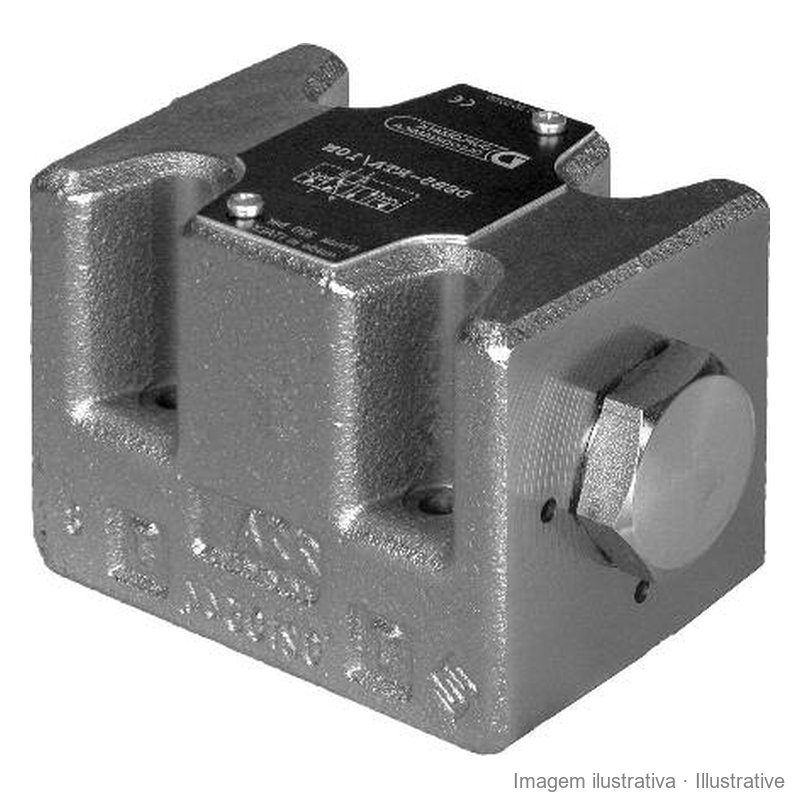

Duplomatic DSB5-RTA/10N self-reversing valve, NG10 (CETOP 5)
€335.50
Tax included
(272.77 € No tax)
Duplomatic DSB5 self-reversing directional valve, NG10 (CETOP 5): it reverses the flow when the cylinder reaches the end of its stroke, with no electrical control.
Duplomatic DSB5-RTA/10N directional valve, with self-reversing spool and ISO 4401-05 subplate mounting, NG10 (CETOP 5). It reverses the flow direction when the flow stops in line A or B, for example when the cylinder reaches the end of its stroke, and the reversal does not depend on the line pressure. It gives continuous reciprocating motion without limit switches or a solenoid valve.
- Maximum pressure at port P: 320 bar; minimum pressure: 60 bar.
- Flow: 10 to 100 l/min.
- NBR seals for mineral oil (letter N), series 10.
- Works with cylinders with an area ratio between 1:1.25 and 1:2.
To set the circuit relief valve, the self-reversing function must be disabled, as explained in the attached data sheet. Before ordering, check the full code on the valve nameplate.
Source: Duplomatic DSB* technical catalogue, version 41 640/115 ED.
D.DSB5RTA
Data sheet
- CETOP interface
- NG10 (CETOP 5)
Specific References
- ean13
- 2200111689929
