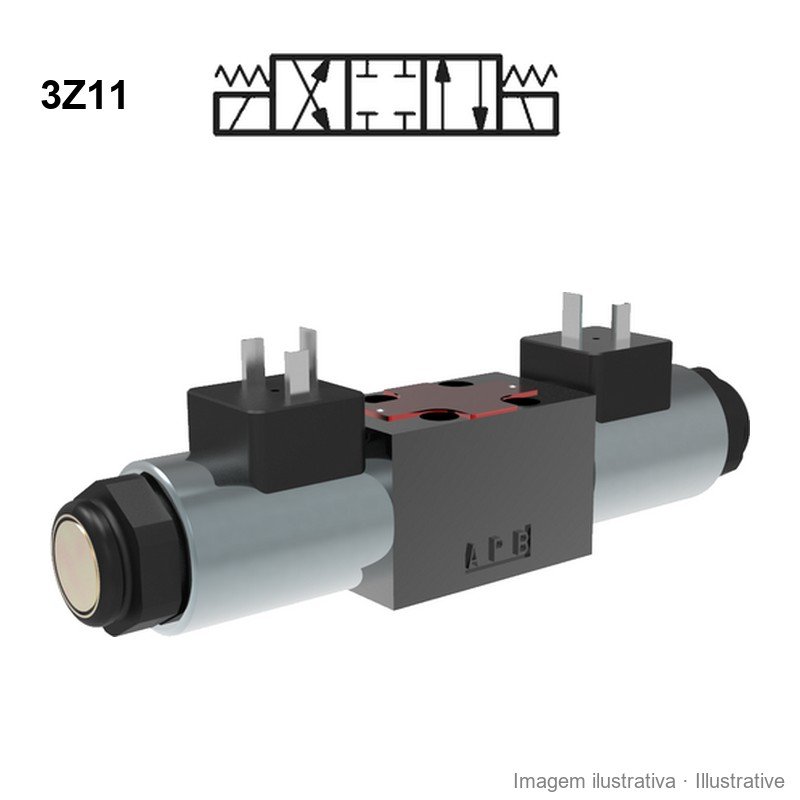

Argo-Hytos RPE3-06 solenoid valve (NG6)
* Price on request *
Tax included
Argo-Hytos RPE3-06 directional solenoid valve, NG6 (CETOP 3), up to 350 bar and 80 l/min, with interchangeable DC coils and several connector types.
The Argo-Hytos RPE3-06 is a direct-acting directional solenoid valve, 4/2 or 4/3, for ISO 4401-03 subplate mounting, NG6 (CETOP 3). The five-chamber body reduces the effect of oil viscosity; the DC coils can be changed without opening the circuit and can run on AC with a rectifier in the connector.
- Maximum pressure: 350 bar
- Maximum flow: 80 l/min
- RPE3-062L13/01200E4A: one solenoid, two positions, 12 V DC, AMP Junior connector with diode
- RPER3-063Z11/02400E1/A19: two solenoids, three positions (Z11 spool), 24 V DC, EN 175301-803-A connector, with manual lever
The valve is supplied without connectors and without mounting bolts (M5 x 45, class 10.9). The PDF datasheets are in the attachments.
Source: Argo-Hytos RPE3-06 datasheet, HA 4010, 05/2018.
AH.29760800
Data sheet
- CETOP interface
- NG4 (CETOP 2)
NG6 (CETOP 3)
Specific References
- ean13
- 2200111712917
4 other products in the same category:
Viewed products
Are you an OEM? Reseller? Workshop?
All options for this item (2)
Description
Part number
Availability
Price
2 solenoids, 3 positions (4/3) - 3Z11 - DC - 24 V - Manual lever (RPER3)
AH.29760800
On request
1 solenoid, 2 positions (4/2) - 2L13 - DC - 12 V - E4A connector (AMP Junior with diode)
AH.28201000
Last units
€149.87
No option matches the filters.
Argo-Hytos RPE3-06 directional solenoid valve, NG6 (CETOP 3), up to 350 bar and 80 l/min, with interchangeable DC coils and several connector types.
