Duplomatic DSP7 pilot operated solenoid valve (NG16), spool S1
search
  • Duplomatic DSP7 pilot operated solenoid valve (NG16), spool S1

Duplomatic DSP7 pilot operated solenoid valve (NG16)

* Price on request *
Price including VAT at the legal rate

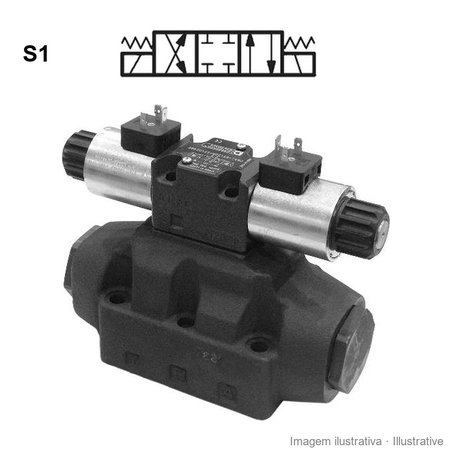

Duplomatic DSP7 pilot operated directional solenoid valve, NG16 (CETOP 7), up to 300 l/min and 350 bar, controlled by an NG6 solenoid valve.

Operation: 2 solenoids, 3 positions (4/3)
Spool: S1
Current: DC
Voltage: 24 V
Extras: External pilot and drain (EE)
Quantity
Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.DSP7S1D24

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The DSP7 is a hydraulically piloted 4-way directional valve with ISO 4401-07 mounting face, NG16 (CETOP 7), operated by an ISO 4401-03, NG6 (CETOP 3) pilot solenoid valve.

  • Maximum flow: 300 l/min; maximum pressure at P, A and B: 350 bar
  • Spools in the list: S1, S2, S3 and S4 (2 solenoids, 3 positions), TA and SA3 (1 solenoid)
  • 12 or 24 V DC coils
  • EE: external pilot and drain; II: internal pilot and drain; CI: internal pilot with backpressure valve and internal drain
  • D: main spool switching speed control
  • Pressure at T: up to 250 bar with external drain, 210 bar with internal drain (DC)

With spools that connect P to T at rest, such as S2 and S4, internal piloting needs the backpressure valve (CI version). Check the spool, pilot and drain of the fitted valve.

Source: Duplomatic DSP7 technical catalogue, version 41 420/116 ED.

D.DSP7S1D24

Data sheet

CETOP interface
NG16 (CETOP 7)

Specific References

MPN
DSP7S1D24

1 other product in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (10)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
2 solenoids, 3 positions (4/3) - S1 - DC - 12 V - External pilot and drain (EE)
D.DSP7S1D12
On request
2 solenoids, 3 positions (4/3) - S1 - DC - 24 V - External pilot and drain (EE)
D.DSP7S1D24
On request
2 solenoids, 3 positions (4/3) - S2 - DC - 24 V - External pilot and drain (EE)
D.DSP7S2D24
On request
2 solenoids, 3 positions (4/3) - S2 - DC - 24 V - Internal pilot with back pressure valve, internal drain (CI)
D.DSP7S2CID24
Last units
2 solenoids, 3 positions (4/3) - S3 - DC - 24 V - External pilot and drain (EE)
D.DSP7S3D24
On request
2 solenoids, 3 positions (4/3) - S4 - DC - 24 V - External pilot and drain (EE)
D.DSP7S4D24
Last units
2 solenoids, 3 positions (4/3) - S4 - DC - 24 V - Internal pilot and drain (II)
D.DSP7S4IID24
On request
2 solenoids, 3 positions (4/3) - S4 - DC - 24 V - Internal pilot with back pressure valve, internal drain (CI)
D.DSP7S4CID24
On request
1 solenoid, 2 positions (4/2) - SA3 - DC - 24 V - External pilot and drain (EE) + Switching speed control (D)
D.DSP7SA3DD24
Last units
1 solenoid, 2 positions (4/2) - TA - DC - 24 V - External pilot and drain (EE)
D.DSP7TAD24
On request
