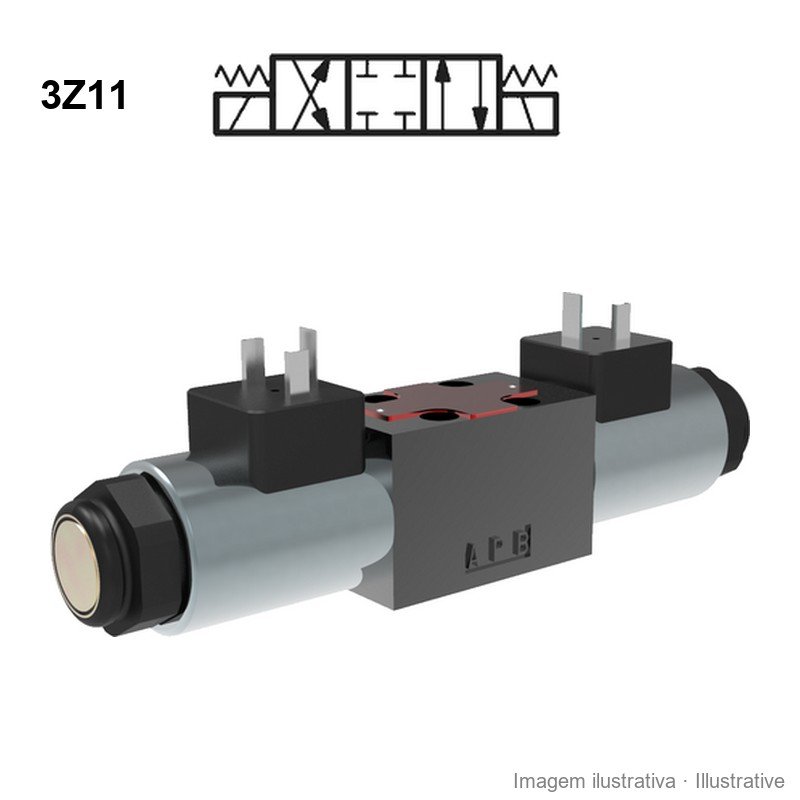

Argo-Hytos RPE3 solenoid valve (NG4), spool Z11
search
  • Argo-Hytos RPE3 solenoid valve (NG4), spool Z11
  • Argo-Hytos RPE3 solenoid valve (NG4)

Argo-Hytos RPE3 solenoid valve (NG4)

* Price on request *
Price including VAT at the legal rate

Argo-Hytos RPE3-04 directional solenoid valve, NG4 (CETOP 2), up to 30 l/min and 320 bar, with 12 or 24 V DC coils.

Operation: 2 solenoids, 3 positions (4/3)
Spool: 3Z11
Current: DC
Voltage: 24 V
Extras: None
Quantity
Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. AH.15852200

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The RPE3-04 is a direct-acting 4/2 or 4/3 directional solenoid valve for NG4 (CETOP 2) subplate mounting to ISO 4401-02.

  • Maximum flow: 30 l/min; maximum pressure: 320 bar
  • 2 solenoids, 3 positions (4/3): Z11 and P11 spools
  • 1 solenoid, 2 positions (4/2): R11, X11 and C11 spools
  • 12 or 24 V DC coils
  • Supplied without connectors; M5 x 35 (DIN 912-10.9) mounting bolts are also ordered separately, tightened to 5 Nm

With two solenoids, one must be de-energised before the other is energised. Check the spool and voltage on the valve plate.

Source: Argo-Hytos RPE3-04 datasheet, HA 4014, 02/2026.

AH.15852200

Data sheet

CETOP interface
NG4 (CETOP 2)
NG6 (CETOP 3)

Specific References

MPN
15852200

2 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (9)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
2 solenoids, 3 positions (4/3) - 3P11 - DC - 12 V - None
AH.15850400
Last units
2 solenoids, 3 positions (4/3) - 3P11 - DC - 24 V - None
AH.15853500
Last units
2 solenoids, 3 positions (4/3) - 3Z11 - DC - 12 V - None
AH.15849000
On request
2 solenoids, 3 positions (4/3) - 3Z11 - DC - 24 V - None
AH.15852200
On request
1 solenoid, 2 positions (4/2) - 2C11 - DC - 12 V - None
AH.16711200
On request
1 solenoid, 2 positions (4/2) - 2R11 - DC - 12 V - None
AH.15851900
Last units
1 solenoid, 2 positions (4/2) - 2R11 - DC - 24 V - None
AH.15855300
Last units
1 solenoid, 2 positions (4/2) - 2X11 - DC - 12 V - None
AH.16711300
Last units
1 solenoid, 2 positions (4/2) - 2X11 - DC - 24 V - None
AH.15856400
On request
