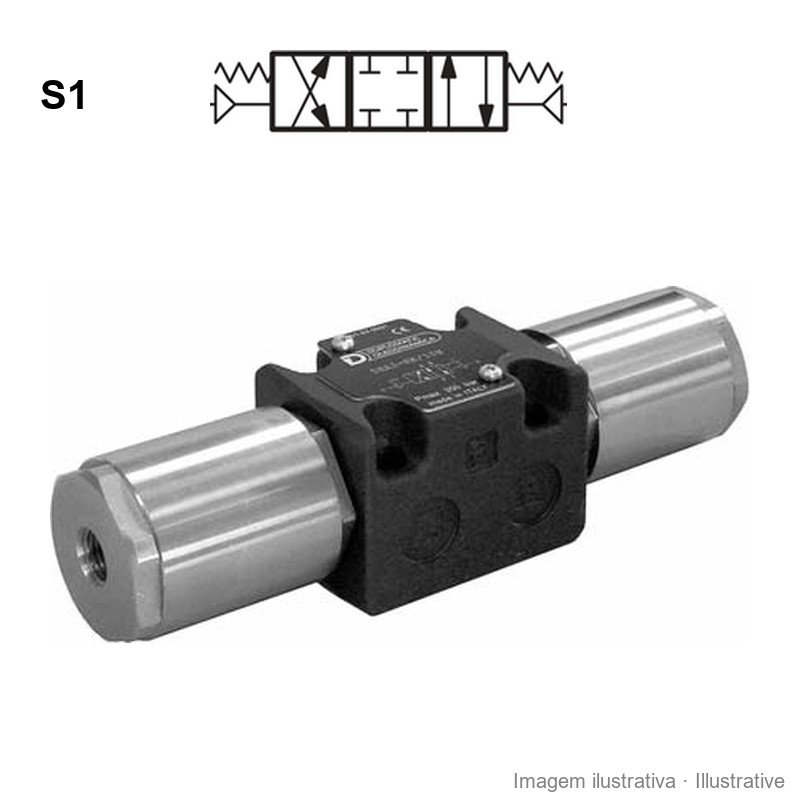

Duplomatic DSA3 pneumatically operated directional valve (NG6)

Name: Duplomatic DSA3 pneumatically operated directional valve (NG6)
Brand: Duplomatic
Availability: InStock

€487.59

Tax included

(396.41 € No tax)

Duplomatic DSA3 pneumatically operated directional valve, NG6 (CETOP 3), up to 350 bar and 75 l/min. The spool shifts with compressed air at 4 to 12 bar.

Operation: Pneumatically operated, 3 positions (4/3)

Spool: S1

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.DSA3S1

€396.41 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

The DSA3 is the pneumatically operated version of Duplomatic's NG6 directional valves: the spool is shifted by compressed air, connected through 1/4" BSP ports in the end caps. It is used where control air is already available and no electrical connection is wanted on the hydraulic valve.

ISO 4401-03 subplate mounting, NG6 (CETOP 3)
Pressure: 350 bar on P, A and B; 25 bar on T
Pneumatic pilot: 4 to 12 bar
Nominal flow: 75 l/min

Available option: DSA3 with S1 spool, three positions, spring centred. Check the spool type and the control air pressure before ordering.

Source: Duplomatic DSA technical catalogue, version 41 620/112 ED.
