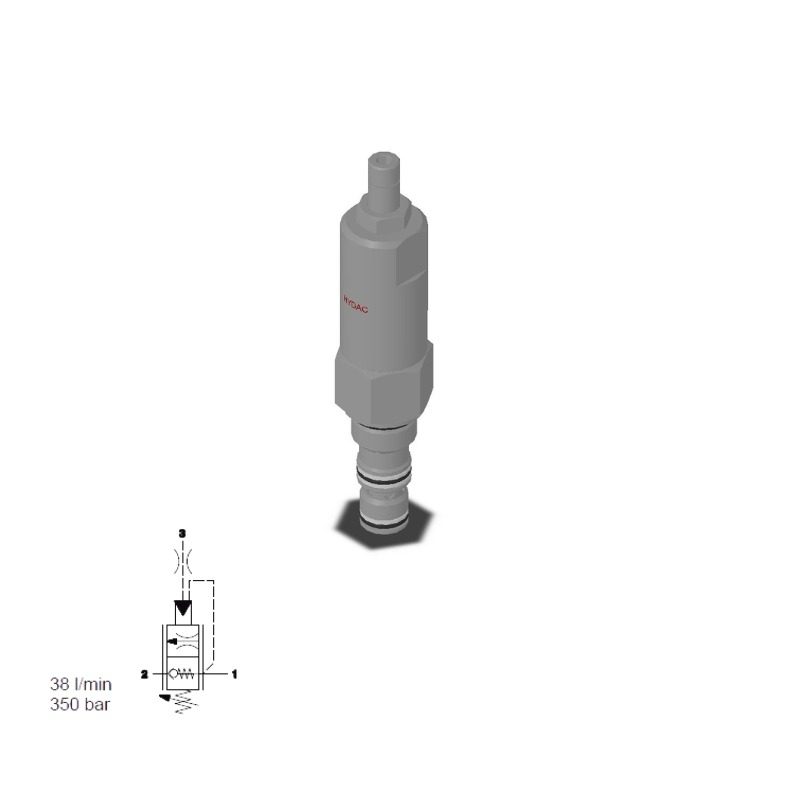

Hydac RS08-01-C-N-3-500V counterbalance valve, SAE-08 cartridge

* Price on request *

Price including VAT at the legal rate

Hydac counterbalance valve in SAE-08 cartridge (cavity FC08-3), up to 38 l/min and 350 bar, with 3:1 pilot ratio.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. HYD3915803

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The RS08-01 is a direct-acting, poppet-type counterbalance (load-holding) valve in a screw-in cartridge. It controls the speed of the actuator according to the inlet flow and stops the load from running away when it lowers or retracts. In load-holding applications it can also be used as a hose-break valve.

Nominal flow: up to 38 l/min
Operating and setting pressure: up to 350 bar
Pilot ratio: 3:1
Cavity: FC08-3
NBR seals; adjusted with an Allen key; supplied with the spring relaxed, the pressure is set on installation
Zinc-plated external surfaces; hardened and ground steel poppet

This is the cartridge only (letter C in the code), without body. For in-line mounting Hydac offers the FH083-SB3 (steel, G3/8) and FH083-AB3 (aluminium, G3/8) bodies. Check the pilot ratio of the circuit: there is also a 4:1 version, RS08-01-C-N-4-500V.

Source: Hydac RS08-01 datasheet, E 5.933.2/01.13.
