Argo-Hytos flow control valve

Name: Argo-Hytos flow control valve
Brand: Argo Hytos
Availability: InStock

€108.39

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(88.12 € Excluding VAT. VAT at the legal rate applies.)

Argo-Hytos restrictors, pressure-compensated flow controls, pressure compensators and a flow divider, as cartridge, in-line or modular valves.

Flow control valve: SF22A-B2/H40S-A

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Ref. AH.28748500

€88.12 excl. VAT

This item groups several Argo-Hytos flow control valves. Choose the exact code in the options; the datasheets are in the attachments.

ST21A-B2/H140S-A: needle restrictor in 7/8"-14 UNF cartridge (cavity C-10-2), restricts in both directions, up to 140 l/min and 350 bar
ST2C1A-A2/L20S-A: needle restrictor with check, in 3/4"-16 UNF cartridge (C-8-2), up to 20 l/min and 320 bar

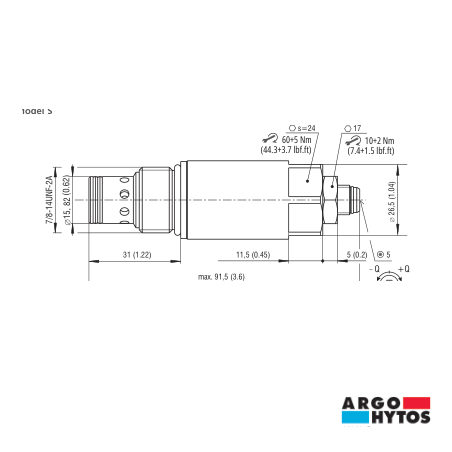

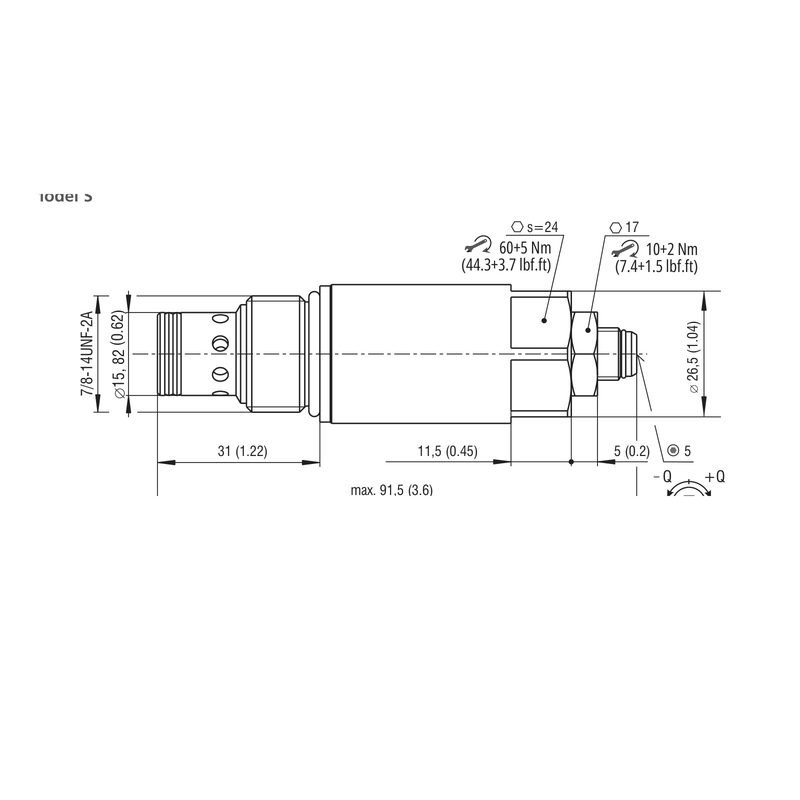

SF22A-B2/H40S-A: flow control with 2-way pressure compensator, 7/8"-14 UNF cartridge, up to 40 l/min and 350 bar
SF32A-B3/H30S-A: flow control with 3-way pressure compensator, 7/8"-14 UNF cartridge, series up to 50 l/min and 350 bar
SFD2F-D4/I150-A: flow divider and combiner, 1-5/16"-12 UN cartridge (cavity D4), 50 to 150 l/min, 350 bar
VSO1-04-R3-G and VSO1-04-R2.5-OG: fine in-line restrictors, G1/4, up to 20 l/min and 100 bar, aluminium body
TV2-102/MC1S-B, TV2-103/MC1S-A and TV3-063/MC4S-A: pressure compensators that keep a constant pressure drop across a control valve, such as a proportional directional valve
VSS2-206-3.2Q/JZO: pressure-compensated flow control with check, subplate mounted

Check the full code on the fitted valve before ordering.

Source: Argo-Hytos datasheets for the ST2, SF22A, SF32A, SFD2F, VSO1, TV2 and TV3 series.
