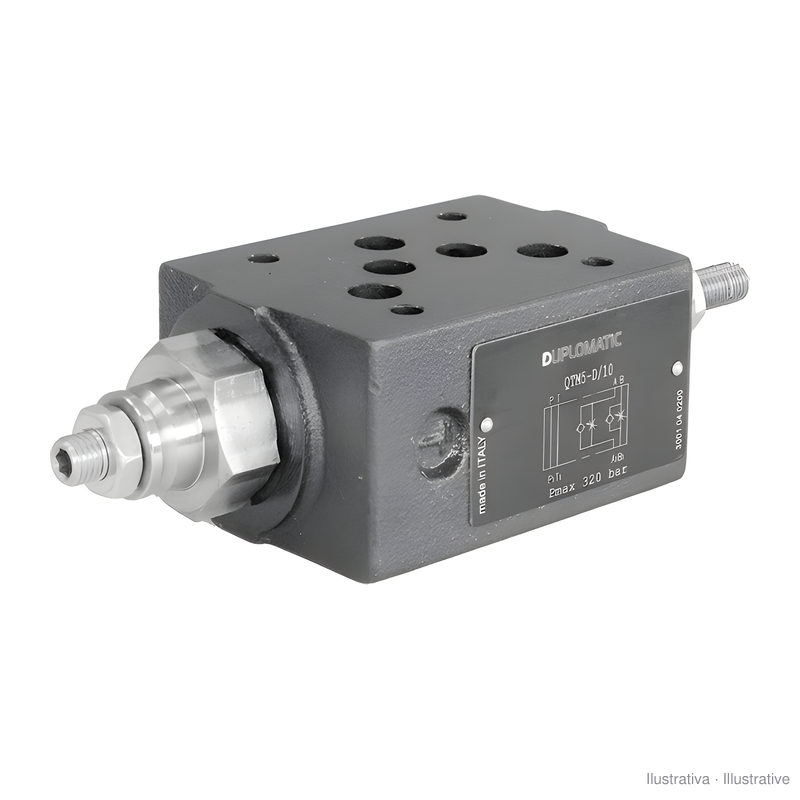

Duplomatic QTM5 and Z4M modular restrictors and reducing valves, NG10 (CETOP 5)
search
  • Duplomatic QTM5 and Z4M modular restrictors and reducing valves, NG10 (CETOP 5)

Duplomatic QTM5 and Z4M modular restrictors and reducing valves, NG10 (CETOP 5)

€473.30
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(384.8 € Excluding VAT. VAT at the legal rate applies.)

NG10 (CETOP 5) modules for line B: QTM5 meter-in or meter-out restrictors, NBR or Viton, and Z4M pressure reducing valves, 5 to 70 or 8 to 140 bar.

Model: Z4M3-B/50 pressure reducing valve (5-70 bar, port B)
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.Z4M3B

€384.80 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Duplomatic NG10 (CETOP 5) modular valves, to fit in the stack under the solenoid valve. All versions in the list act on line B only.

  • QTM5-SB/10: restrictor on the flow leaving the actuator (meter-out) on line B
  • QTM5-RSB/10: restrictor on the flow entering the actuator (meter-in) on line B
  • Z4M3-B/50: pilot-operated pressure reducing valve on line B, 5 to 70 bar
  • Z4M4-B/50: pilot-operated pressure reducing valve on line B, 8 to 140 bar

The QTM5 restrictors handle up to 120 l/min and have a check valve for free return. The Z4M reducing valves work up to 320 bar, with line A at full pressure. For special fluids there are restrictors with Viton seals.

Source: Duplomatic QTM5 technical catalogue, version 64 310/110 ED; Duplomatic Z4M technical catalogue, version 62 300/110 ED.

D.Z4M3B

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (6)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
QTM5-RSB/10V/S (meter-in, line B)
D.QTM5RSB
On request
QTM5-RSB/10V/S Viton (meter-in, line B)
D.QTM5RSBV
On request
QTM5-SB/10V/S (meter-out, line B)
D.QTM5SB
On request
QTM5-SB/10V/S Viton (meter-out, line B)
D.QTM5SBV
On request
Z4M3-B/50 pressure reducing valve (5-70 bar, port B)
D.Z4M3B
Last units
Z4M4-B/50 pressure reducing valve (8-140 bar, port B)
D.Z4M4B
On request
