Duplomatic QTM5-D/10 double modular flow restrictor, NG10 (CETOP 5), meter-out

Name: Duplomatic QTM5-D/10 double modular flow restrictor, NG10 (CETOP 5), meter-out
Brand: Duplomatic
Availability: InStock

€341.09

Tax included Delivery in 1 to 5 working days.

(277.31 € No tax)

NG10 (CETOP 5) double modular restrictor that controls the flow leaving the actuator, on lines A and B. Up to 120 l/min.

Duplomatic DS5: QTM5-D/10

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.QTM5D

€277.31 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

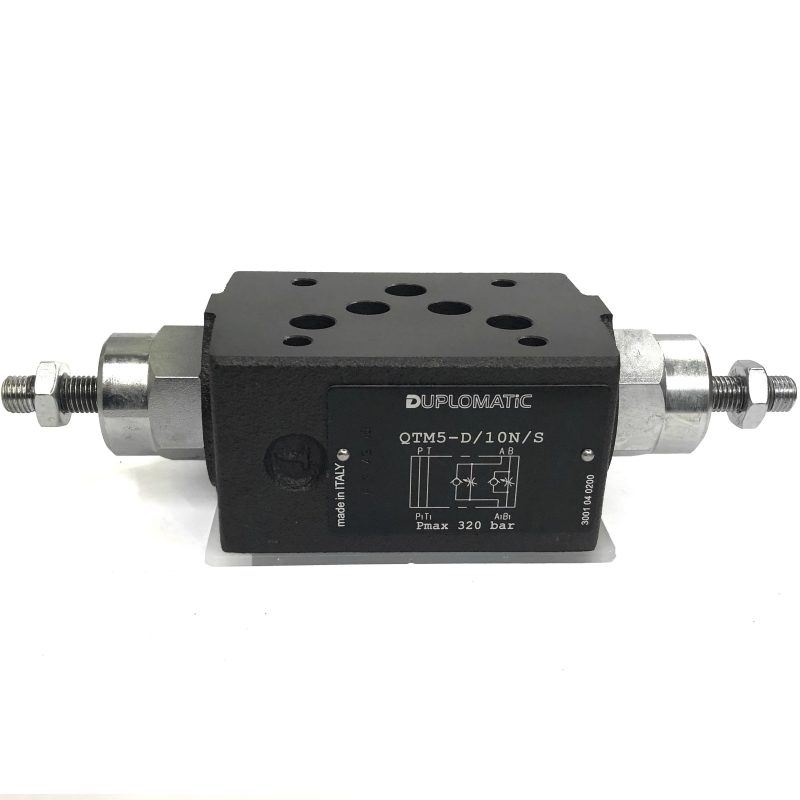

The QTM5 is a flow restrictor with built-in check valve, in ISO 4401-05 modular form. It fits in the stack, under the NG10 (CETOP 5) solenoid valve, without pipework, and is used to set the speed of larger cylinders and motors.

The D version meters the flow out of the actuator on both lines, A and B, each with its own screw; in the opposite direction the oil flows freely through the check valve, which opens at 0.5 bar. To increase the flow, turn the screw anticlockwise.

Maximum flow: 120 l/min
Maximum pressure: 350 bar, according to datasheet 64 310
Countersunk hexagon screw adjustment with locknut

For meter-in control there is the QTM5-RD version.

Source: Duplomatic QTM5 technical catalogue, version 64 310/110 ED.
