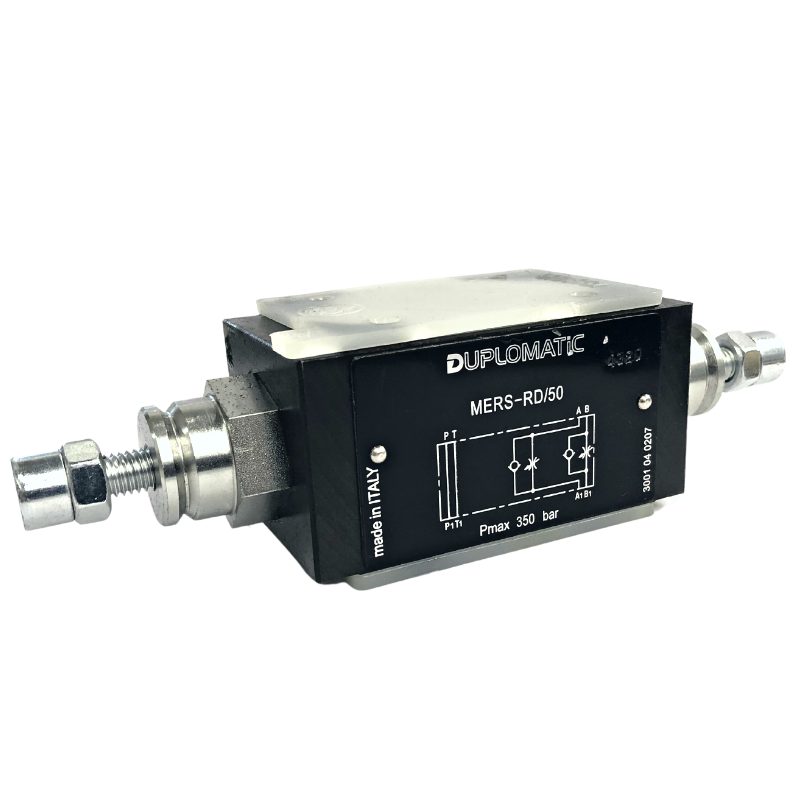

Duplomatic MERS-RD double modular flow restrictor, NG6 (CETOP 3), meter-in
€166.72
Tax included
Delivery in 1 to 5 working days.
(135.55 € No tax)
NG6 (CETOP 3) double modular restrictor that independently controls, on A and B, the flow entering the actuator. Up to 350 bar and 50 l/min.
The MERS-RD is the meter-in version of the MERS double modular restrictor: instead of holding back the oil coming out, it controls the flow entering each chamber of the actuator, with one screw for A and one for B. The return flows freely through a check valve that opens at 0.5 bar.
It fits under the NG6 (CETOP 3) solenoid valve, in the ISO 4401-03 modular stack, without pipework. Meter-in control is usually chosen for loads that always push against the actuator; with loads that pull the cylinder, the meter-out version (MERS-D) gives better control.
- Maximum pressure: 350 bar
- Maximum flow: 50 l/min in the controlled lines, 75 l/min in the free lines
- Not compensated: speed varies with load and oil temperature
Source: Duplomatic MERS technical catalogue, version 64 200/112 ED.
D.MERSRD
Data sheet
- Pressure
- ≤ 350 bar
- Flow
- ≤ 50 L/min
- CETOP interface
- NG6 (CETOP 3)
Specific References
- ean13
- 2200111678046
