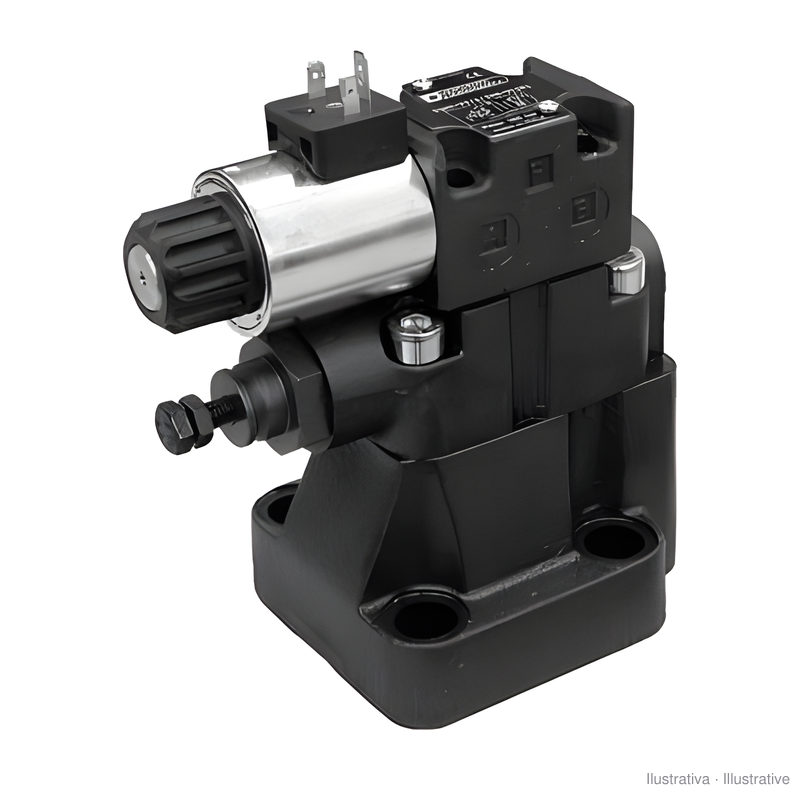

Duplomatic RQM solenoid vented pilot operated relief valve

Name: Duplomatic RQM solenoid vented pilot operated relief valve
Brand: Duplomatic
Availability: InStock

€457.11

Tax included Delivery in 1 to 5 working days.

(371.64 € No tax)

Duplomatic RQM pilot operated relief valves, with a solenoid valve to unload the pump, for CETOP R06, R08 and R10 subplates or with BSP threads.

RQM: RQM3-P6/A/60/N-DS3 (SEM E.V.)

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.RQM3P6ADS3

€371.64 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The RQM are pilot operated pressure relief valves with an NG6 (CETOP 3) solenoid valve mounted on top, which switches the whole pump flow to tank. All the options in this list are version A, series 60, with NBR seals.

RQM3-P: ISO 6264-06 subplate (CETOP R06), up to 200 l/min
RQM5-P: ISO 6264-08 subplate (CETOP R08), up to 400 l/min
RQM7-P: ISO 6264-10 subplate (CETOP R10), up to 500 l/min
RQM7-W: BSP threads (P 1" 1/4, T 1" 1/2), up to 400 l/min
Setting range: code 5 up to 210 bar, code 6 up to 350 bar
D24K1: solenoid valve with 24 V DC coil and DIN 43650 plug, connector ordered separately
Options marked "sem E.V.": supplied without the solenoid valve

Maximum operating pressure: 350 bar. Before ordering, check the subplate or thread size, the pressure range and the coil voltage.

Source: Duplomatic RQM*-P technical catalogue, version 21 310/112 ED; Duplomatic RQM*-W technical catalogue, version 21 230/112 ED.
