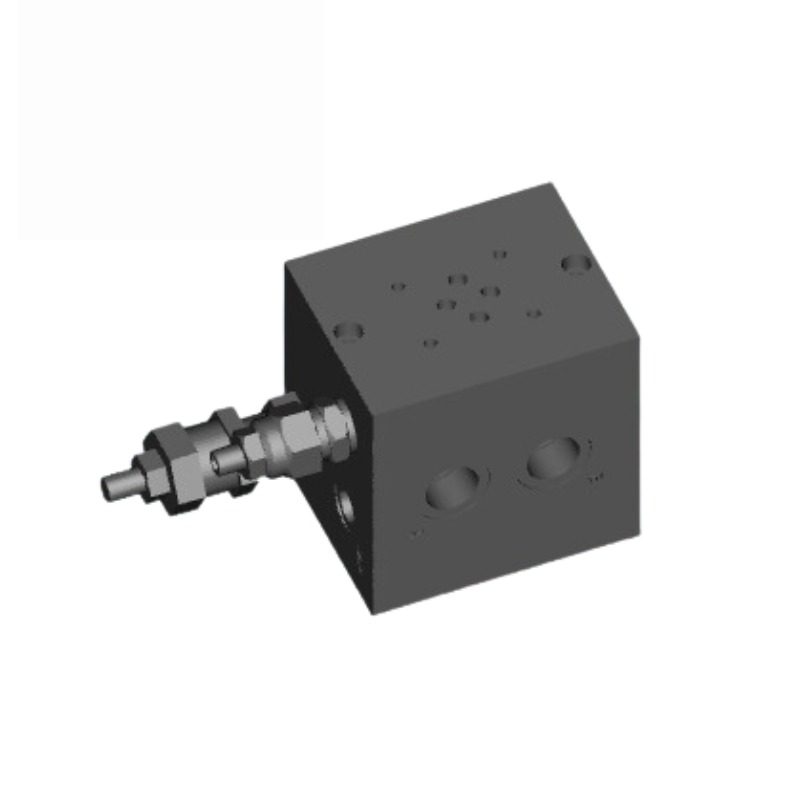

High-low base NG6 Eurofluid ET203/3F2F

* Price on request *

Price including VAT at the legal rate

Eurofluid ET203/3F2F high-low pressure base, with a mounting face for NG6 (CETOP 3) valves.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.6295.ET2033F2F

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Eurofluid ET203 series block, for power units with a high-low double pump, with an NG6 (CETOP 3) mounting face for the solenoid valve.

In a high-low circuit, both pumps add their flow while the pressure is low, for the fast approach. When the pressure rises to the set value, the higher-flow pump is unloaded to tank and the work carries on with the high-pressure pump only, using less power.

The ET203/3F2F datasheet is in the attachments. Before ordering, check the connection threads for the pumps and tank and the flow of each pump.
