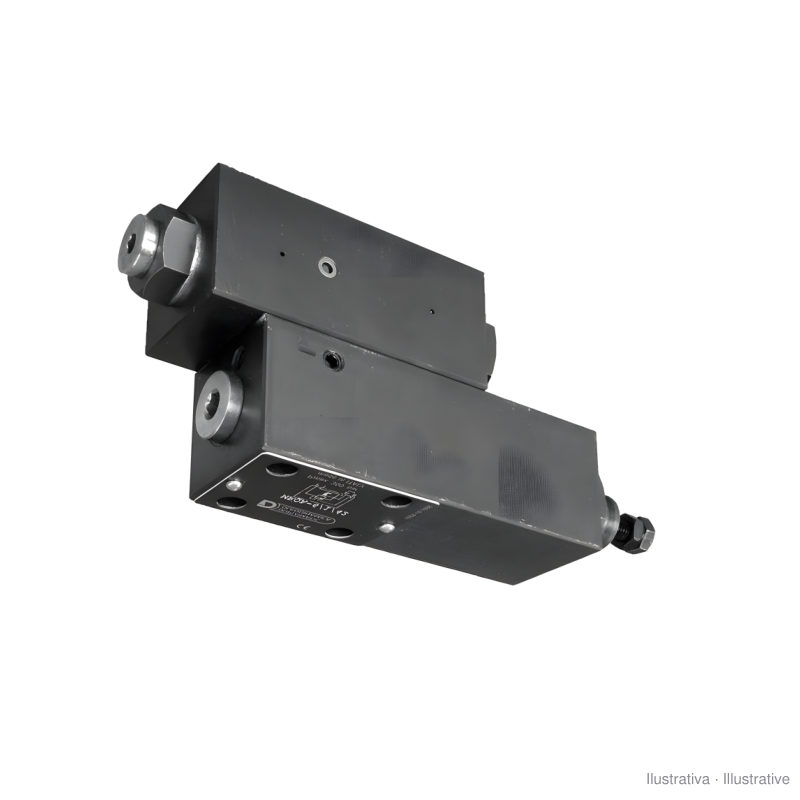

Duplomatic accumulator charging valve MRQA-5/1

Name: Duplomatic accumulator charging valve MRQA-5/1
Brand: Duplomatic
SKU: D.MRQA51
Price: 871.97 EUR
Availability: InStock

€871.97

Tax included

(708.92 € No tax)

Duplomatic MRQA-5/1 accumulator charging valve, NG6 (CETOP 3), with 50 to 210 bar setting range.

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.MRQA51

€708.92 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The MRQA-5/1 is a pressure relief valve with automatic unloading, for circuits with an accumulator. On reaching the set value it lets the pump unload freely to tank, and puts it back under pressure when the circuit drops to 78% of that value. Meanwhile the accumulator holds the pressure.

Subplate mounting ISO 4401-03, NG6 (CETOP 3)
Setting range: 50 to 210 bar (code 5)
Pump cuts back in at 78% of the set value (code 1)
Maximum flow: 40 l/min; maximum pressure: 350 bar
Without check valve plate

Without a check valve, the accumulator would discharge through the open valve. Make sure the circuit already has a check valve between the MRQA and the accumulator; if not, choose the MRQA-5/1/C.

Source: Duplomatic MRQA technical catalogue, version 21 400/112 ED.
