Argo-Hytos DR1-04 NG4 block for valves in parallel, 2 to 8 stations

€169.12
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(137.49 € Excluding VAT. VAT at the legal rate applies.)

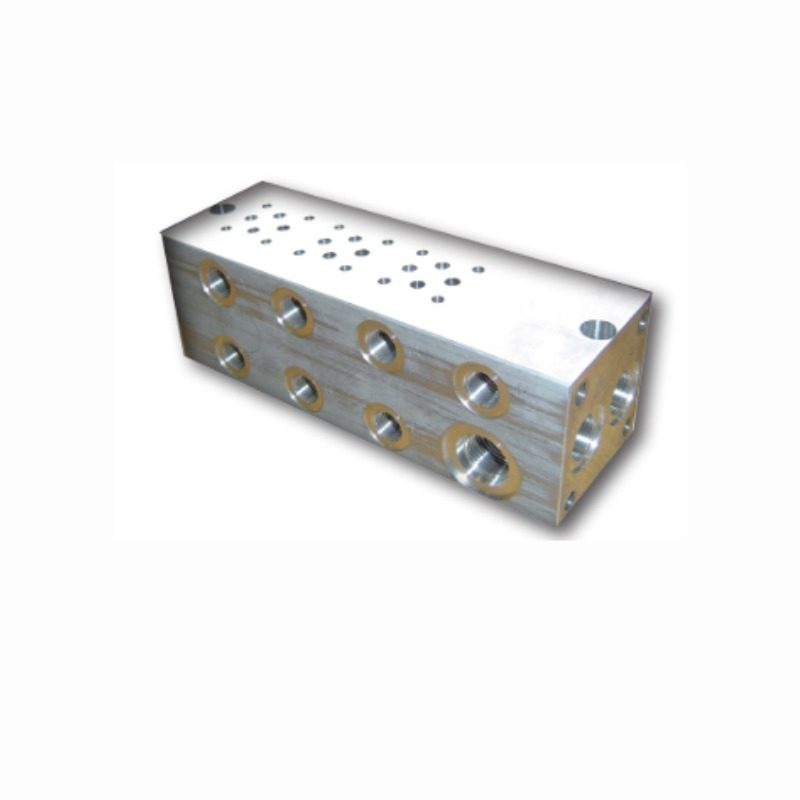

Argo-Hytos DR1-04 aluminium blocks for mounting 2 to 8 NG4 (CETOP 2) valves in parallel, up to 320 bar, with or without relief valve cavities.

In-line manifold: 2-NG4 (W/ 2XCAV08-2) DR1-04/22AL
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. AH.23693200

€137.49 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The DR1-04 is a block for NG4 valves (ISO 4401-02, CETOP 2): each station takes one valve and all of them are fed in parallel from the same P and T. The A and B ports of each station come out on the side.

  • Maximum pressure: 320 bar
  • P and T: G3/8; A and B: G1/4
  • Material: EN AW-7075 T6 aluminium, no surface treatment

There are two families in the options. DR1-04/20AL to /80AL (2 to 8 stations) have no cavities. DR1-04/22AL, /32AL and /42AL (2 to 4 stations) have two 3/4-16 UNF cavities (CAV 08-2), one for the relief valve and one for the unloading valve, and an M gauge port in G1/4.

If the block is fed from both ends, the maximum flow can be doubled.

Source: Argo-Hytos DR1-04 data sheet, HA 0017, 04/2023.

AH.23693200

Data sheet

CETOP interface
NG4 (CETOP 2)

Specific References

MPN
23693200

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (10)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
2-NG4 (W/ 2XCAV08-2) DR1-04/22AL
AH.23693200
Last units
2-NG4 DR1-04/20AL
AH.23714600
Last units
3-NG4 (W/ 2XCAV08-2) DR1-04/32AL
AH.23693300
Last units
3-NG4 DR1-04/30AL
AH.23714700
Last units
4-NG4 (W/ 2XCAV08-2) DR1-04/42AL
AH.23693400
Last units
4-NG4 DR1-04/40AL
AH.23714800
Last units
5-NG4 DR1-04/50AL
AH.23714900
Last units
6-NG4 DR1-04/60AL
AH.23715000
Last units
7-NG4 DR1-04/70AL
AH.23715100
Last units
8-NG4 DR1-04/80AL
AH.23715200
Last units
