Eurofluid ET217/3F1F NG16 high-low pressure base, HP 1/2", LP 1", T 1.1/4" rear

Name: Eurofluid ET217/3F1F NG16 high-low pressure base, HP 1/2", LP 1", T 1.1/4" rear
Brand: Eurofluid
SKU: 1.6295.16APBP
Price: 1148.43 EUR
Availability: InStock

€1,148.43

Price including VAT at the legal rate

(933.68 € Excluding VAT. VAT at the legal rate applies.)

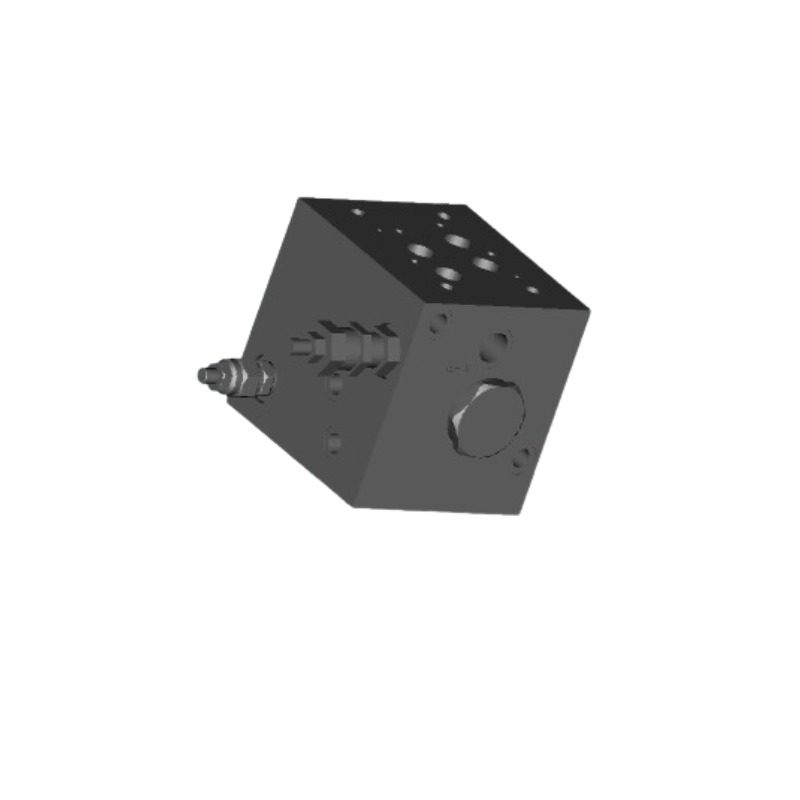

Eurofluid ET217/3F1F base for a high and low pressure double pump, with a face for one NG16 (CETOP 7) valve. Up to 300 l/min and 300 bar.

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.6295.16APBP

€933.68 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Base for circuits with a double pump: up to the low-pressure setting, both pumps add their flow; above it, the low-pressure pump unloads to tank and the high-pressure one carries on alone. An NG16 (CETOP 7) directional valve is mounted on top.

Nominal flow: 300 l/min; maximum pressure: 300 bar
HP: 1/2" G at the rear, with VS-80 relief valve, key adjustment from 80 to 270 bar (3F)
LP: 1" G at the rear, key adjustment from 30 to 100 bar (1F)
T: 1.1/4" G at the rear; A and B: 1" G on the side; X and Y for valve pilot and drain
GG25 cast iron body, polyurethane and NBR seals, 20 kg

The LP line is prepared for electric venting and leaves the factory with the seat closed by an ETVEI plug. Dimensions and diagram in the attached datasheet.

Source: Eurofluid ET217 data sheet, REV. 01.
