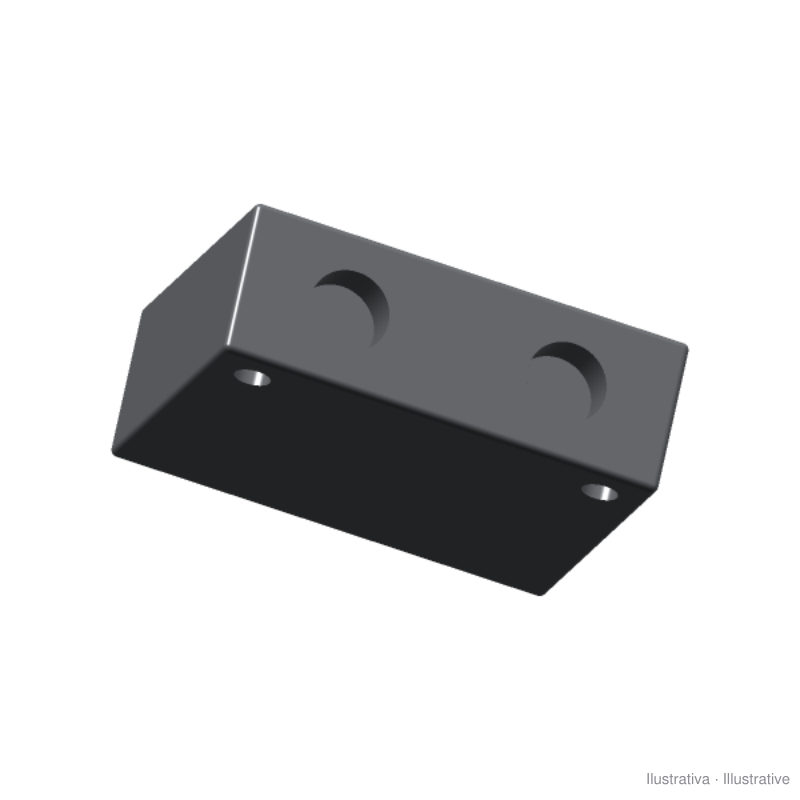

Eurofluid ES710LLZ NG16 single subplate 1", with seat for VSP-150 relief valve
€241.15
Price including VAT at the legal rate
(196.06 € Excluding VAT. VAT at the legal rate applies.)
Eurofluid ES710LLZ single subplate for one NG16 (CETOP 7) valve, with A, B, P and T in 1" G on the side and a seat prepared for the VSP-150 relief valve.
Subplate for mounting one NG16 (CETOP 7) valve, with the four main ports in 1" G on the side and the X, Y and M gauge ports in 1/4" G. The letter Z in the code means the subplate has the seat machined for the VSP-150 relief valve, but without the valve, which is fitted separately.
- Dimensions: 160 x 115 mm, fixing by 4 holes of Ø11
- Weight: 10 kg
- VSP-150 springs listed by Eurofluid for this subplate: 1.7 to 70 bar or 10 to 210 bar
It is the same subplate as the ES710LL versions without seat and with the relief valve already fitted; check which one the machine has from the stamped code.
Source: Eurofluid Hydraulic general catalogue.
1.6295.16LLZ
Data sheet
- CETOP interface
- NG16 (CETOP 7)
Specific References
- MPN
- ES710LLZ
