Badestnost P40 directional valve

€100.88
Tax included Delivery in 1 to 5 working days.

(82.01 € No tax)

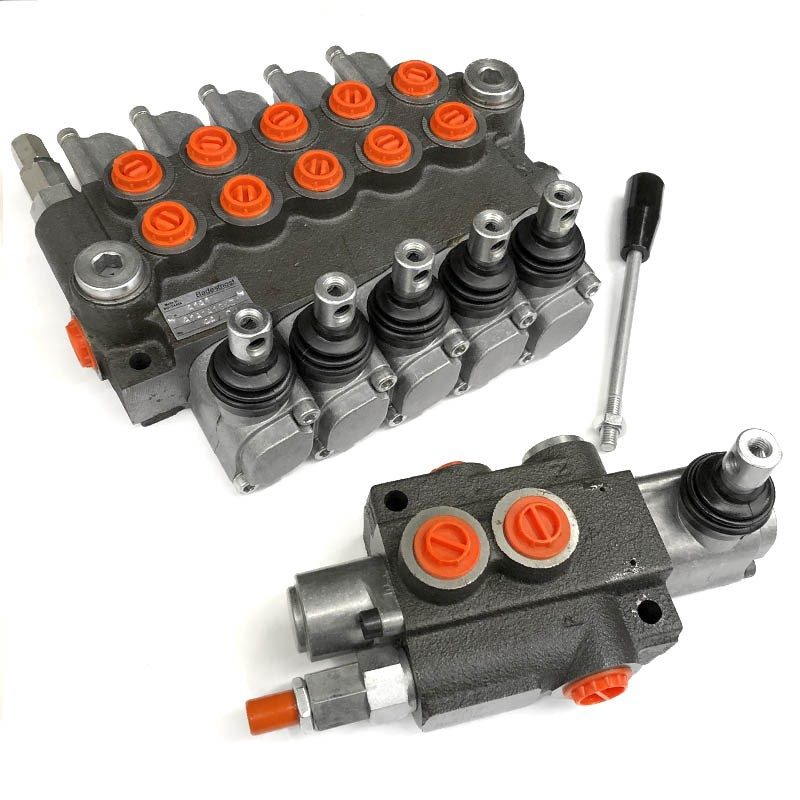

Badestnost P40 monoblock directional valve with manual or mechanical control, 1 to 7 levers, for 40 l/min and 250 bar.

P40 directional valve: 1 lever
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2341.A1

€82.01 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Badestnost P40 hydraulic monoblock directional valve, with parallel spools. It is used to control hydraulic cylinders and motors on tractors, trailers and small agricultural and forestry machines.

  • Nominal flow: 40 l/min
  • Maximum pressure: 250 bar
  • A1 spools: double-acting, with A and B closed in the centre, and spring return to neutral

Choose the number of levers in the options, from 1 to 7; for 1 lever there is also a version with G1/2 threads. Dimensions and diagram are in the attached data sheet. Spare parts (spool controls, levers, plugs) are in the P40 parts and kits item.

Source: Badestnost Z50 (P40) data sheet, August 2015.

1.2341.A1

Data sheet

Pressure
250 bar
Flow
40 L/min

Specific References

ean13
2200001047402

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (16)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
1 lever
1.2341.A1
In stock
1 lever (G1/2")
1.2341.A1G12
In stock
1 alavanca A2 (teton lado alavanca)
1.2341.A2T
In stock
1 alavanca A3 (teton lado centragem)
1.2341.A3T
In stock
1 alavanca A6 (teton lado alavanca)
1.2341.A6T
Last units
1 alavanca A7 (teton lado centragem)
1.2341.A7T
In stock
1 alavanca B1 (simples efeito)
1.2341.B1
Last units
1 alavanca C1 (simples efeito)
1.2341.C1
In stock
1 alavanca K16
1.2341.K16
In stock
2 levers
1.2341.2A1
In stock
2 alavancas A1-B1
1.2341.2A1B1
Last units
3 levers
1.2341.3A1
In stock
4 levers
1.2341.4A1
On request
5 levers
1.2341.5A1
Last units
6 levers
1.2341.6A1
Last units
7 levers
1.2341.7A1
In stock
