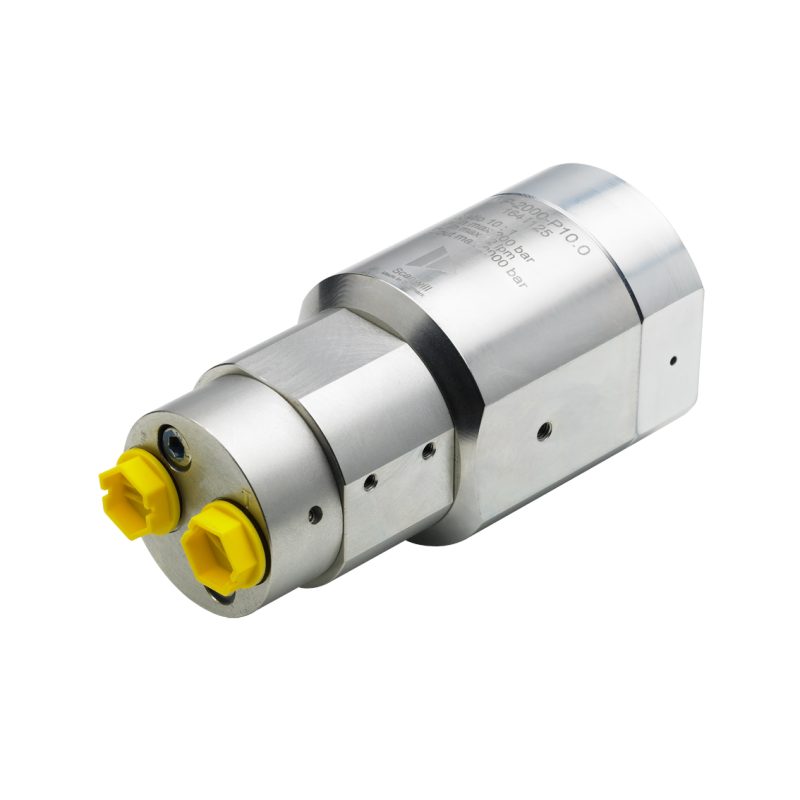

ScanWill MP-2000-P-7.0 pressure intensifier

* Price on request *

Price including VAT at the legal rate

ScanWill MP-2000-P pressure intensifier, ratio 7.0.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2290.MP2000P7

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

ScanWill MP-2000 series pressure intensifier, for in-line mounting. It takes oil from a standard pump at port P and, with a piston set that reciprocates by itself, controlled by an internal valve, sends it to the high-pressure outlet (HP). When the end pressure is reached, the pistons stop and only move again to make up for leakage or consumption.

Ratio: 7.0
Supply pressure: up to 200 bar
Output pressure: up to 1,400 bar
Inlet flow: up to 13 l/min; outlet flow from 1.1 to 0.2 l/min, depending on pressure
Weight: 2.7 kg

The P in the code stands for the internal pilot-operated check valve (POV), which allows the high-pressure side to be released: port T is pressurised and port P is connected to tank. Recommended filtration: 10 µm nominal, maximum cleanliness 19/16 to ISO 4406.

Source: ScanWill The MP-Series of Hydraulic Pressure Intensifiers technical catalogue, 2016.
