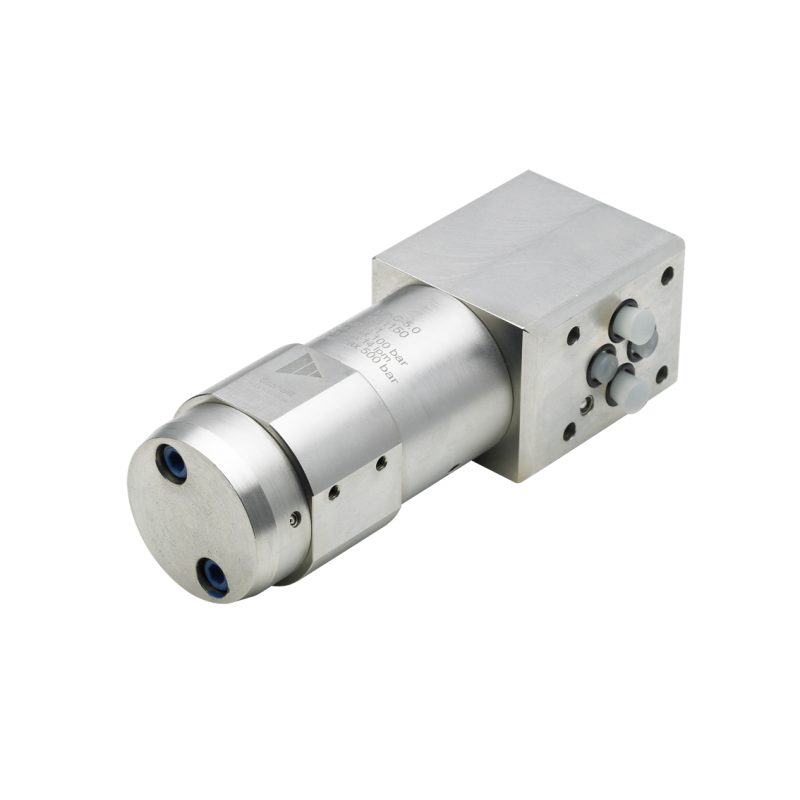

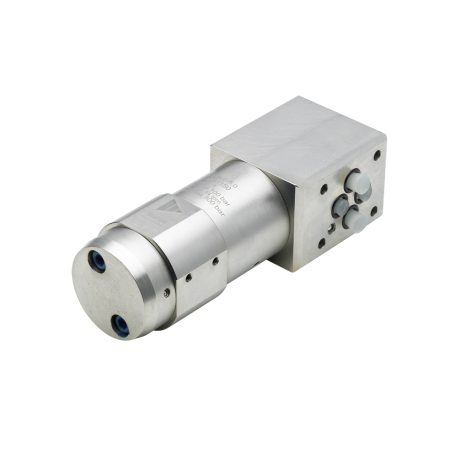

ScanWill MP-C-3.4 pressure intensifier NG6 (CETOP 3)

* Price on request *

Price including VAT at the legal rate

ScanWill MP-C pressure intensifier with NG6 (CETOP 3) interface, ratio 3.4, up to 500 bar output.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2290.MPC34

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

ScanWill MP-C pressure intensifier, mounted on a subplate or block with an NG6 (CETOP 3) interface. It takes oil from a standard pump at port P and, with a piston set that reciprocates by itself, controlled by an internal valve, sends it to the high-pressure outlet (HP). When the end pressure is reached, the pistons stop and only move again to make up for leakage or consumption. All high-pressure valves are integrated, including a pilot-operated check valve.

Ratio: 3.4
Supply pressure: up to 147 bar
Output pressure: up to 500 bar
Inlet flow: up to 15 l/min; outlet flow from 2.2 to 0.5 l/min, depending on pressure
Weight: 2.7 kg

Recommended filtration: 10 µm nominal, maximum cleanliness 19/16 to ISO 4406.

Source: ScanWill The MP-Series of Hydraulic Pressure Intensifiers technical catalogue, 2016.
