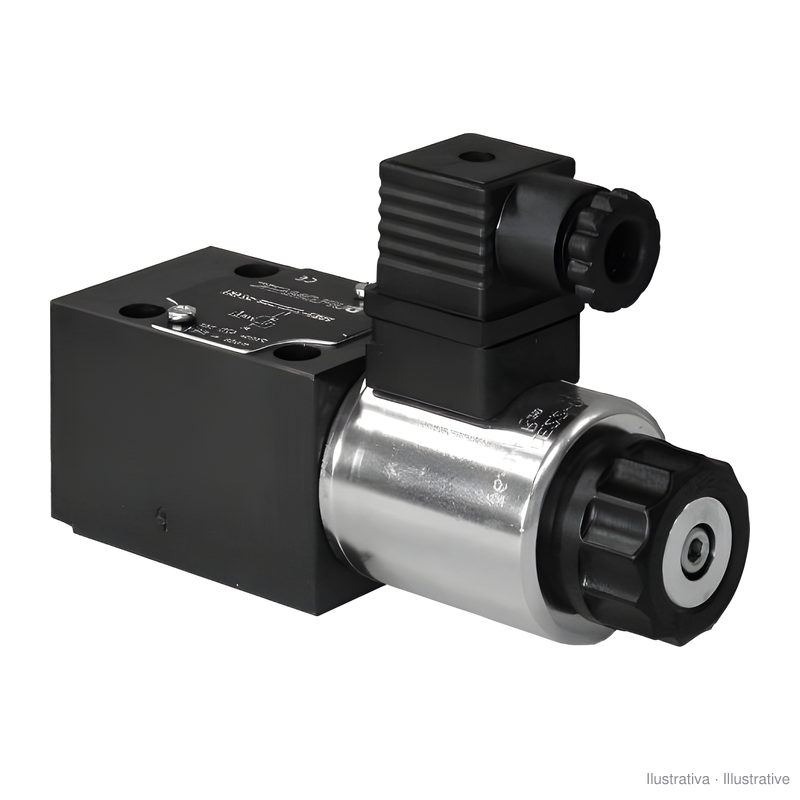

Duplomatic PDE3 proportional relief valve NG6 (CETOP 3)

Name: Duplomatic PDE3 proportional relief valve NG6 (CETOP 3)
Brand: Duplomatic
Availability: InStock

€816.76

Tax included Delivery in 1 to 5 working days.

(664.03 € No tax)

Duplomatic PDE3 direct-acting proportional relief valve, NG6 (CETOP 3), with setting ranges up to 70, 140, 210 or 350 bar.

PDE3: PDE3-070/10ND24K1

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.PDE37024

€664.03 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Duplomatic PDE3 direct-acting proportional pressure relief valve, with ISO 4401-03 interface, NG6 (CETOP 3). The set pressure varies in proportion to the current sent to the solenoid, so the circuit pressure can be changed from a PLC or an electronic card without touching adjusting screws.

As the maximum flow is low (2 l/min), it is mainly used to pilot two-stage valves, such as pilot-operated relief valves, or to control pressure in low-flow circuits. It has a mechanical pressure limitation for added safety.

Choose the range in the options: PDE3-070, -140, -210 or -350 (up to 70, 140, 210 or 350 bar), all series 10, with NBR seals, 24 V DC solenoid and DIN 43650 plug (K1).

Source: Duplomatic PDE3 technical catalogue, version 81 211/218 ED.
