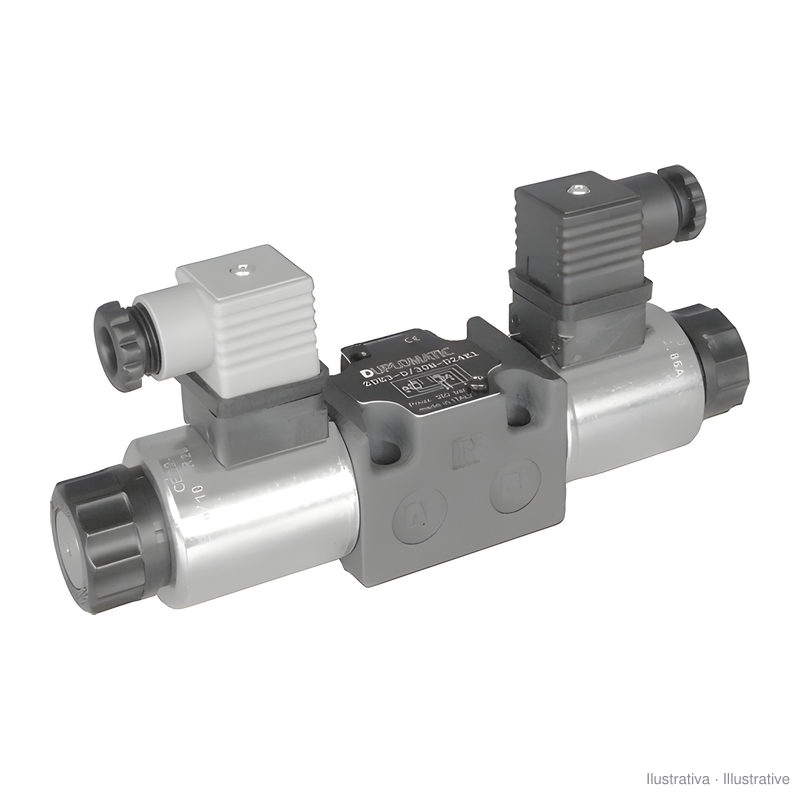

Duplomatic ZDE3 / PZE3 / RLM3 valve NG6 (CETOP 3)

Name: Duplomatic ZDE3 / PZE3 / RLM3 valve NG6 (CETOP 3)
Brand: Duplomatic
Availability: InStock

€915.47

Tax included Delivery in 1 to 5 working days.

(744.28 € No tax)

Duplomatic NG6 (CETOP 3) valves: ZDE3 and PZE3 proportional pressure reducing valves and RLM3 modular fast/slow valve.

Model: ZDE3-D/30N-D24K1

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.ZDE3DD24

€744.28 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

This item groups several Duplomatic valves with ISO 4401-03 interface, NG6 (CETOP 3). Choose from the options:

ZDE3-D/30N-D24K1: direct-acting proportional pressure reducing valve, reducing in A and in B (two solenoids), 24 V DC
ZDE3-SA/30N-D24K1: the same, reducing in A only
ZDE3G-SB/32N-E0K11B: with on-board electronics, reducing in B, voltage command (E0) and K11 connector
PZE3JH-070/31N-FDK16D0/PN00: pilot-operated proportional pressure reducing valve, range up to 70 bar (070); check with us the electronics version and the command connection
RLM3A-C22/21N-D24K1: not proportional; it is a modular fast/slow selection valve, with a normally closed 24 V DC solenoid valve and flow control up to 22 l/min on chamber A

The ZDE3 valves accept up to 100 bar at the inlet and 15 l/min and suit low-pressure branches. Check the full code on the nameplate before ordering.

Source: Duplomatic ZDE3 technical catalogue, version 81 510/116 ED; Duplomatic RLM3 technical catalogue, version 66 260/110 ED.
