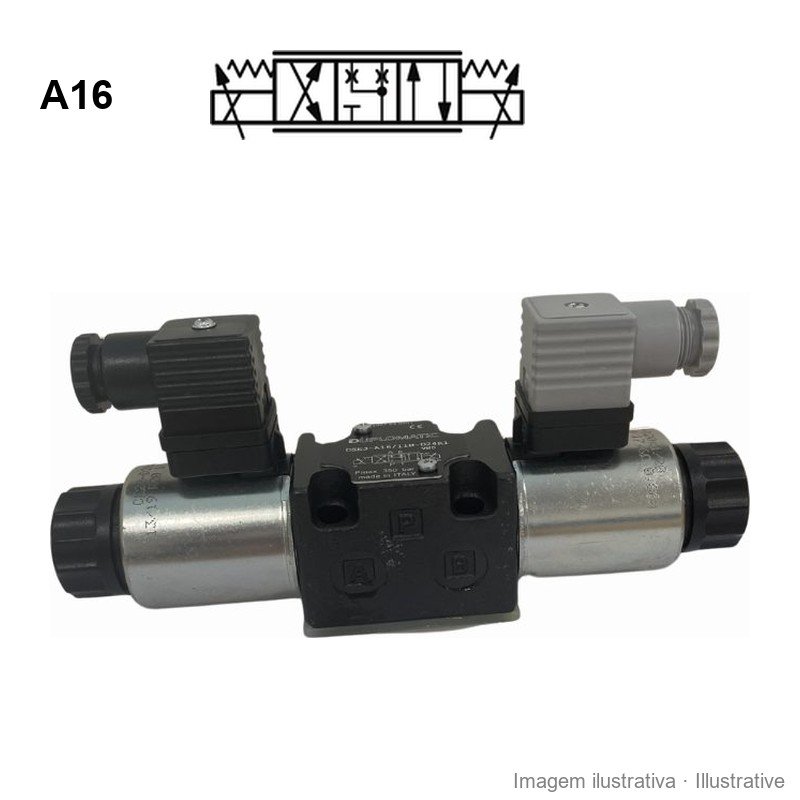

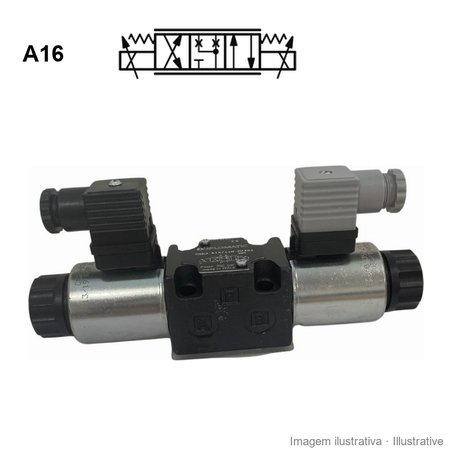

Duplomatic DSE3 proportional directional valve NG6 (CETOP 3), scheme A16
search
  • Duplomatic DSE3 proportional directional valve NG6 (CETOP 3), scheme A16
  • Duplomatic DSE3 proportional directional valve NG6 (CETOP 3)

Duplomatic DSE3 proportional directional valve NG6 (CETOP 3)

€794.27
Tax included Delivery in 1 to 5 working days.

(645.75 € No tax)

Duplomatic DSE3 proportional directional valve, NG6 (CETOP 3), up to 350 bar, with open or closed centre spools from 8 to 26 l/min.

Operation: 2 proportional solenoids, 3 positions
Spool: A16
Current: DC
Voltage: 24 V
Extras: None
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.DSE3A1624

€645.75 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Duplomatic DSE3 direct-acting proportional directional valve, with ISO 4401-03 interface, NG6 (CETOP 3). It controls the direction and speed of cylinders and motors: the flow varies continuously with the solenoid current. It is driven by an external electronic card.

  • Maximum pressure: 350 bar at P, A and B; 210 bar at T
  • Maximum flow: 40 l/min
  • 24 V DC solenoids with DIN 43650 plug

In the scheme, the letter gives the spool (A = open centre, C = closed centre) and the number the nominal flow at Δp 10 bar P to T: 08, 16 or 26 l/min. SA or SB are the single-solenoid versions, on side A or side B, with two positions. There is also option TA0024.

Source: Duplomatic DSE3 technical catalogue, version 83 210/216 ED.

D.DSE3A1624

Data sheet

CETOP interface
NG6 (CETOP 3)

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (10)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
2 proportional solenoids, 3 positions - A08 - DC - 24 V - None
D.DSE3A0824
Last units
€924.46
2 proportional solenoids, 3 positions - A16 - DC - 24 V - None
D.DSE3A1624
Last units
€794.27
2 proportional solenoids, 3 positions - A26 - DC - 24 V - None
D.DSE3A2624
Last units
€985.09
2 proportional solenoids, 3 positions - C08 - DC - 24 V - None
D.DSE3C0824
On request
2 proportional solenoids, 3 positions - C16 - DC - 24 V - None
D.DSE3C1624
Last units
€865.76
2 proportional solenoids, 3 positions - C26 - DC - 24 V - None
D.DSE3C2624
Last units
€924.46
1 proportional solenoid, 2 positions - A16SB - DC - 24 V - None
D.DSE3A16SB24
On request
1 proportional solenoid, 2 positions - A26SB - DC - 24 V - None
D.DSE3A26SB24
On request
1 proportional solenoid, 2 positions - C26SA - DC - 24 V - None
D.DSE3C26SA24
On request
1 proportional solenoid, 2 positions - TA0024 - DC - 24 V - None
D.DSE3TA002424
On request
