Argo-Hytos pilot-operated relief valve (cartridge)

€79.03
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(64.25 € Excluding VAT. VAT at the legal rate applies.)

Argo-Hytos pilot-operated cartridge relief valves SR4A-B2 (up to 100 l/min and 350 bar), SR4E2-B2 solenoid relief valve and SR6H main stages.

Model: CAV10-2 (0-63 BAR) : SR4A-B2/H6S-A
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. AH.24512600

€64.25 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Argo-Hytos pilot-operated relief cartridges, for the main pressure of circuits with more flow than a direct-acting relief valve can take.

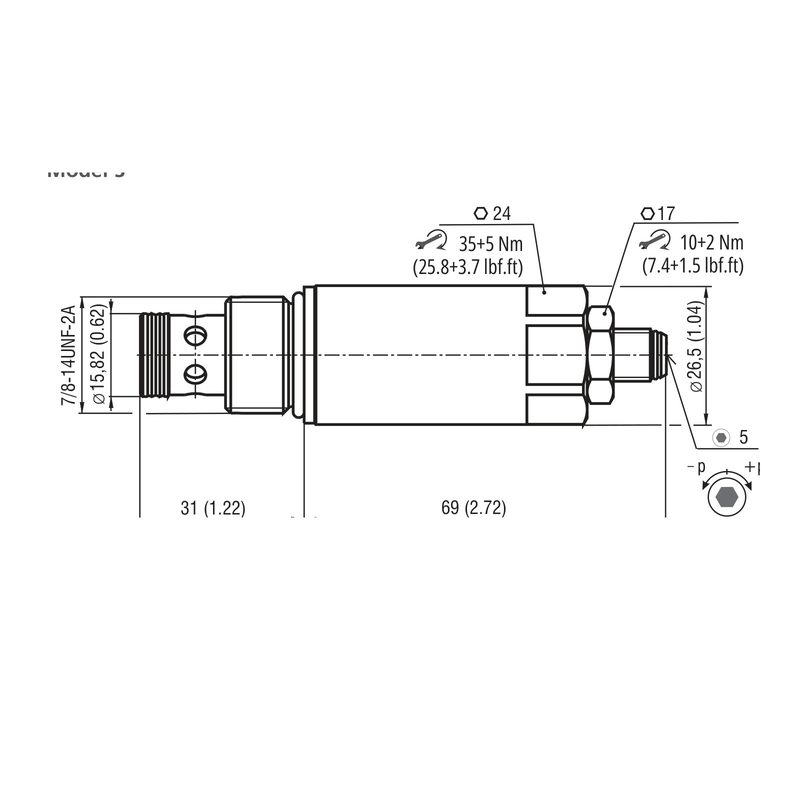

  • SR4A-B2: pilot-operated relief valve, B2 cavity (C-10-2, 7/8-14 UNF), up to 100 l/min and 350 bar; ranges H6 (63 bar), H10 (100), H25 (250) and H35 (350 bar), Allen key adjustment
  • SR4E2-B2/H21-A: pilot-operated relief valve with solenoid, normally open: de-energised it unloads the pump to tank at minimum pressure; with the coil energised it rises to the maximum set pressure. Up to 60 l/min; range H21, up to 210 bar
  • SR6H-B2 and SR6H-C2: main stages (without pilot) of the Argo-Hytos pilot-operated and proportional relief valves, for B2 and C2 cavities

Argo-Hytos does not recommend the SR4A for safety functions where response speed is critical.

Source: Argo-Hytos SR4A-B2 data sheet, HA 5065; Argo-Hytos SR4E2-B2, HA 5068, 11/2018, and SR4P2-B2, HA 5117, 02/2016, data sheets.

AH.24512600

Data sheet

Cavity
CAV 10-2
CAV 12-2

Specific References

MPN
24512600

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (7)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
2-stage electric CAV10-2 (350 bar): SR4E2-B2/H21-A
AH.34411900
Last units
CAV10-2 (0-63 BAR) : SR4A-B2/H6S-A
AH.24512600
In stock
CAV10-2 (0-100 BAR) : SR4A-B2/H10S-A
AH.24512700
In stock
CAV10-2 (0-250 BAR) : SR4A-B2/H25S-A
AH.24512900
In stock
CAV10-2 (0-350 BAR) : SR4A-B2/H35S-A
AH.24513000
In stock
CAV10-2 SR6H-B2/H-B
AH.40459600
In stock
CAV12-2 SR6H-C2/H-B
AH.47000604
In stock
